WING / WING GENERAL MAINTENANCE 17-11
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

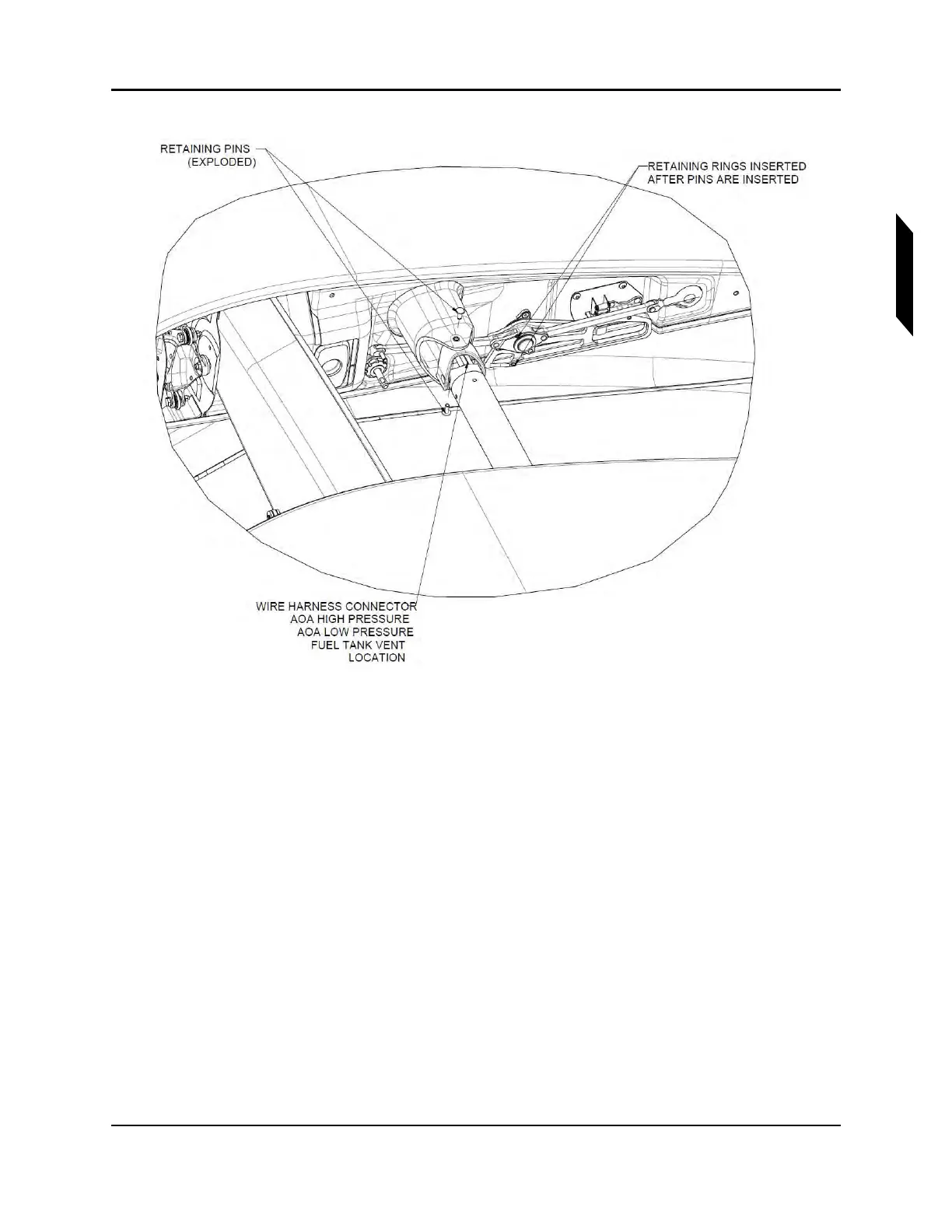

3. Locate the avionics tubes, electrical harness for lights, and fuel vent tube inside the hinge.
4. Disconnect the electrical connector from the protruding pigtail.
5. Disconnect the AOA high pressure tube and low pressure tube on one side of the push-on tube
connectors.
6. Disconnect the fuel vent tube on one side of the push-on tube connector.
To Next Page
