17-10 WING / WING GENERAL MAINTENANCE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

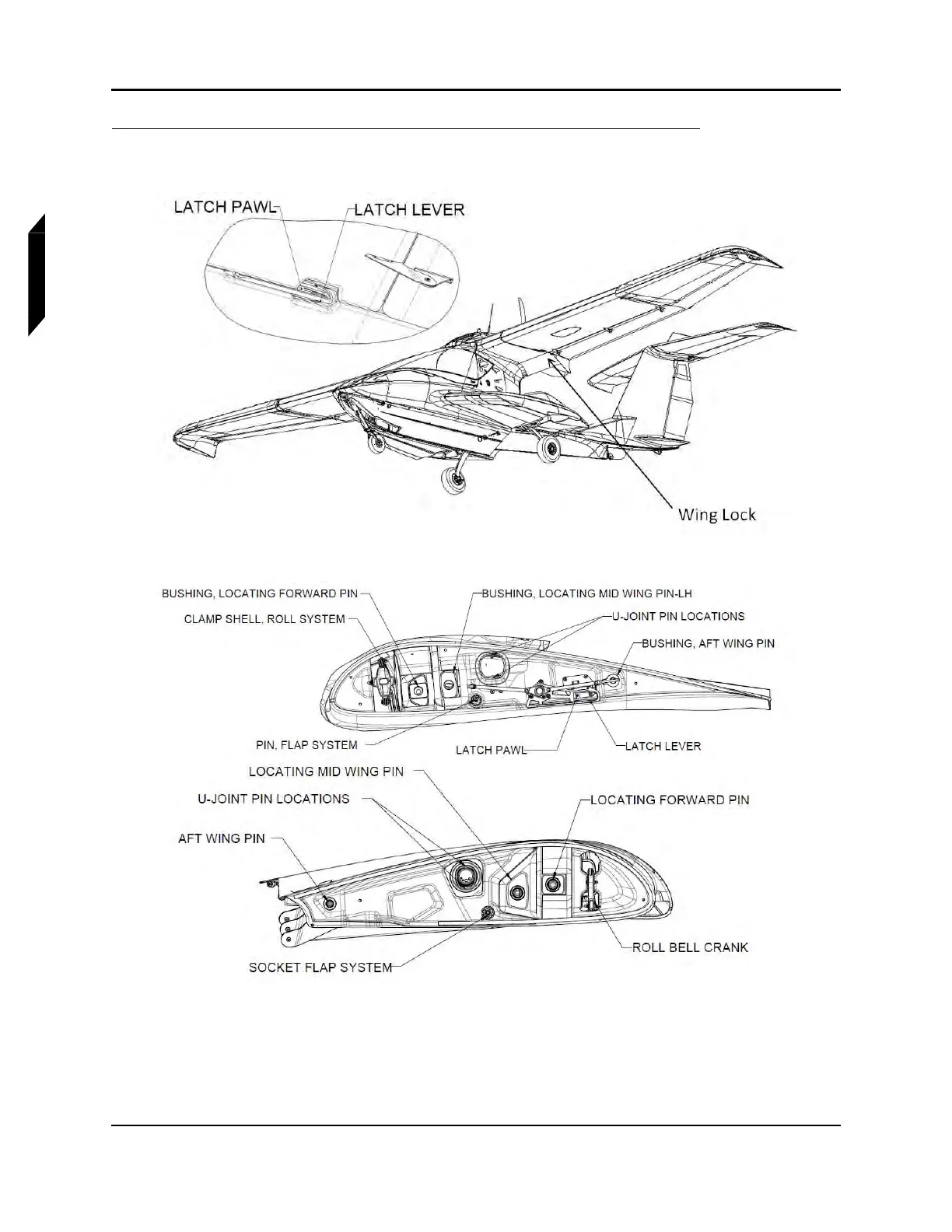

1. Unlock the wing locking mechanism by pressing the latch pawl on the wing lock switch, then
simultaneously pull the wing handle lock down all the way to unlock both locking pins.
2. Pull the wing outward about a foot and rest securely on a ladder. Note the interlocking pins, the
flap system interconnect piston, and the ailerons interlocking clam shell system.
