17-38 WING / WING LOCK
ICON A5 / MAINTENANCE MANUAL CHANGE C2

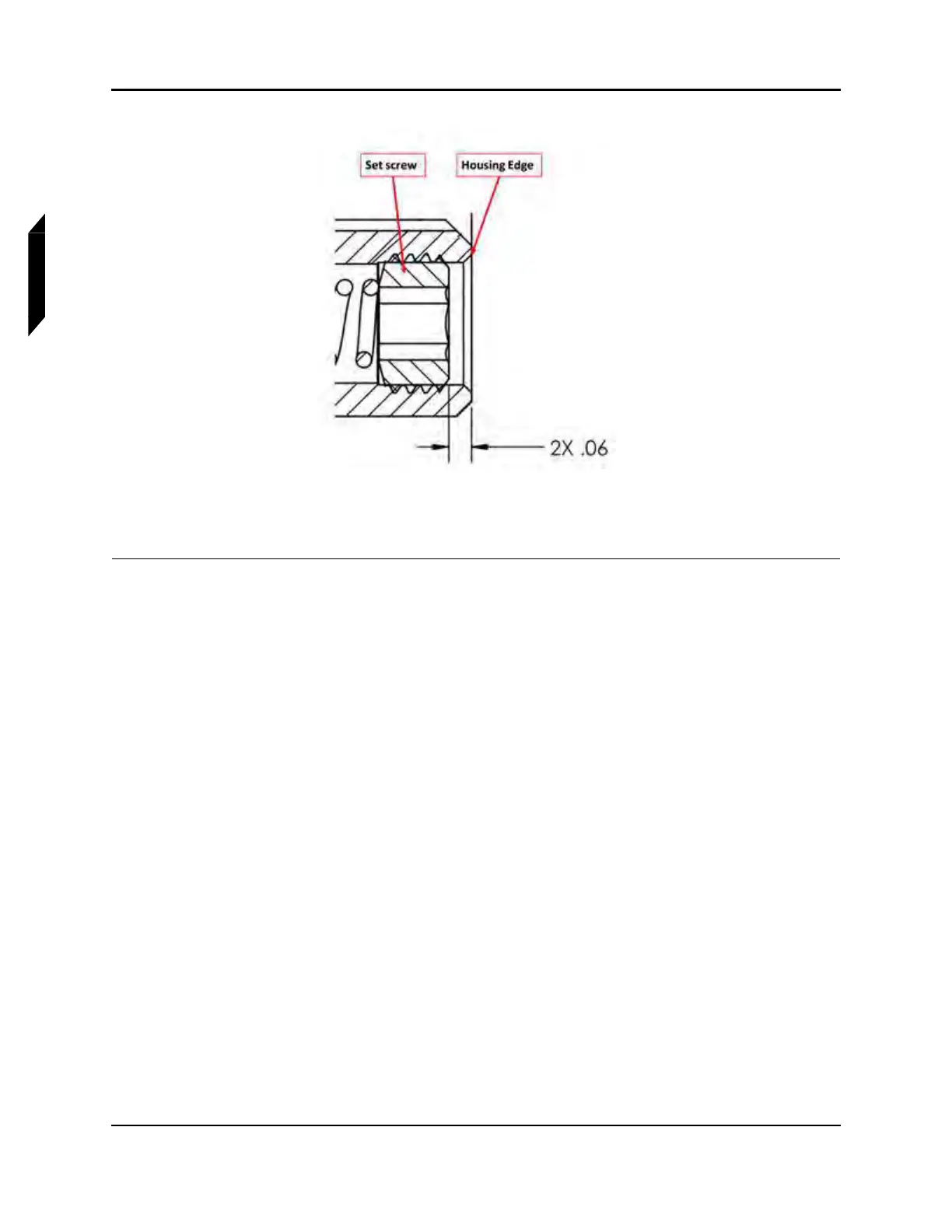

FIGURE 17-12
SET SCREW
6. Repeat the above steps for the other set screw in the housing.
VERIFICATION METHOD:
From the up and locked position, unlatch the handle locking pawl and pull the handle down. The force
needed to displace the handle from the grasp of the lock catch should be 7±2 lb
f
. Adjust the housing
set screws equally, together in or out, to achieve this force.
RELATED INFORMATION:
"Wing Lock Handle Installation" on page 17-30
