ICON PARACHUTE SYSTEM (IPS) / EXTRACTION ROCKET 19-31
CHANGE C1 ICON A5 / MAINTENANCE MANUAL

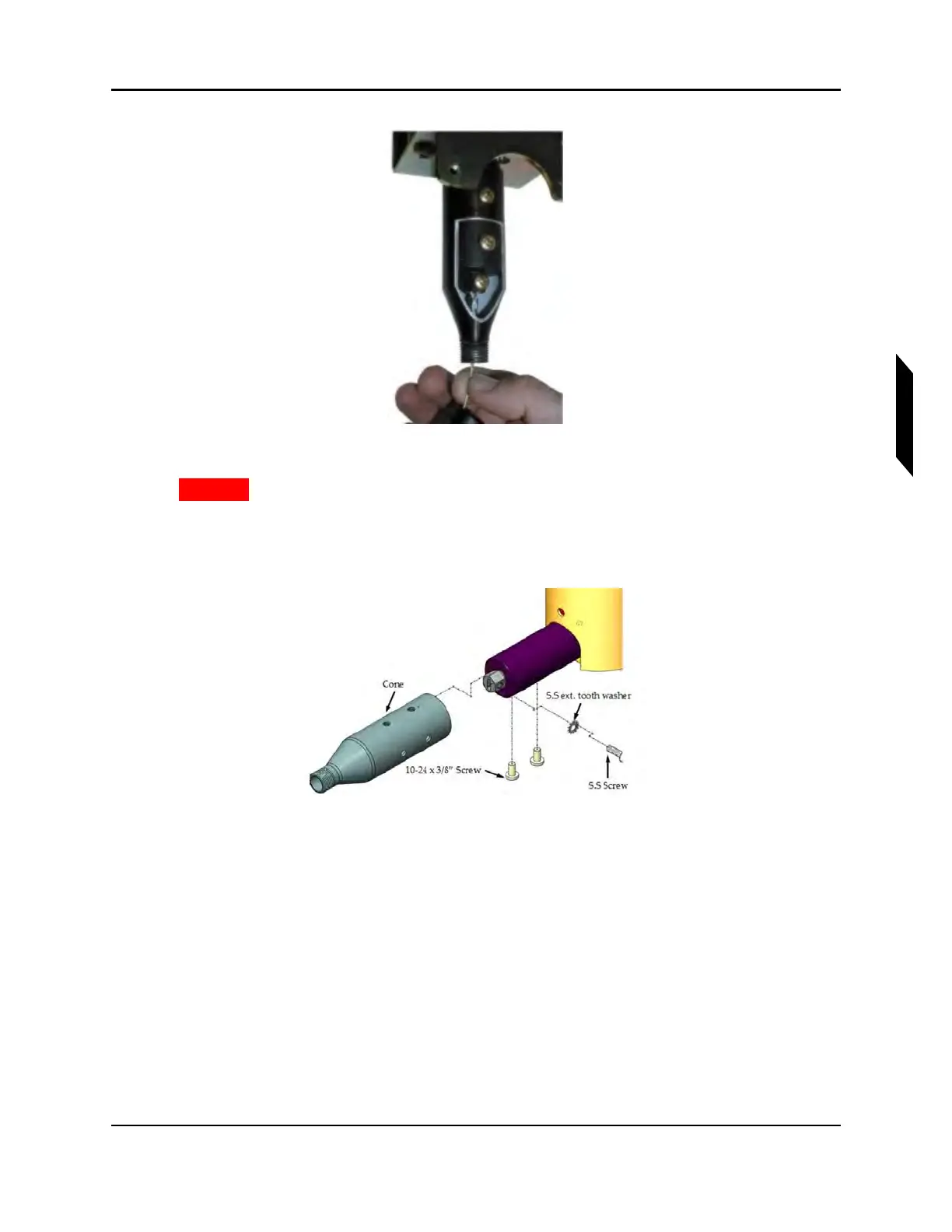

FIGURE 19-24
CHECKING CABLE LOOP SECURITY
WARNING: Pulling too hard can cause the extraction rocket to fire.
3. Grasp the launch tube cone, secure it with (2) two screws, 10-24 x 3/8” PH, with a drop of
LOCTITE Blue 242 threadlocker. A torque value of 1.5 lb-ft should be used to tighten this screw.
Ensure mating threads are clean, free of debris and not cross threaded.
FIGURE 19-25
REINSTALLATION OF LAUNCH TUBE CONE
4. Insert non-threaded plug into access hole to protect it from the elements.
