ICON PARACHUTE SYSTEM (IPS) / ACTIVATION SYSTEM 19-37
CHANGE C1 ICON A5 / MAINTENANCE MANUAL

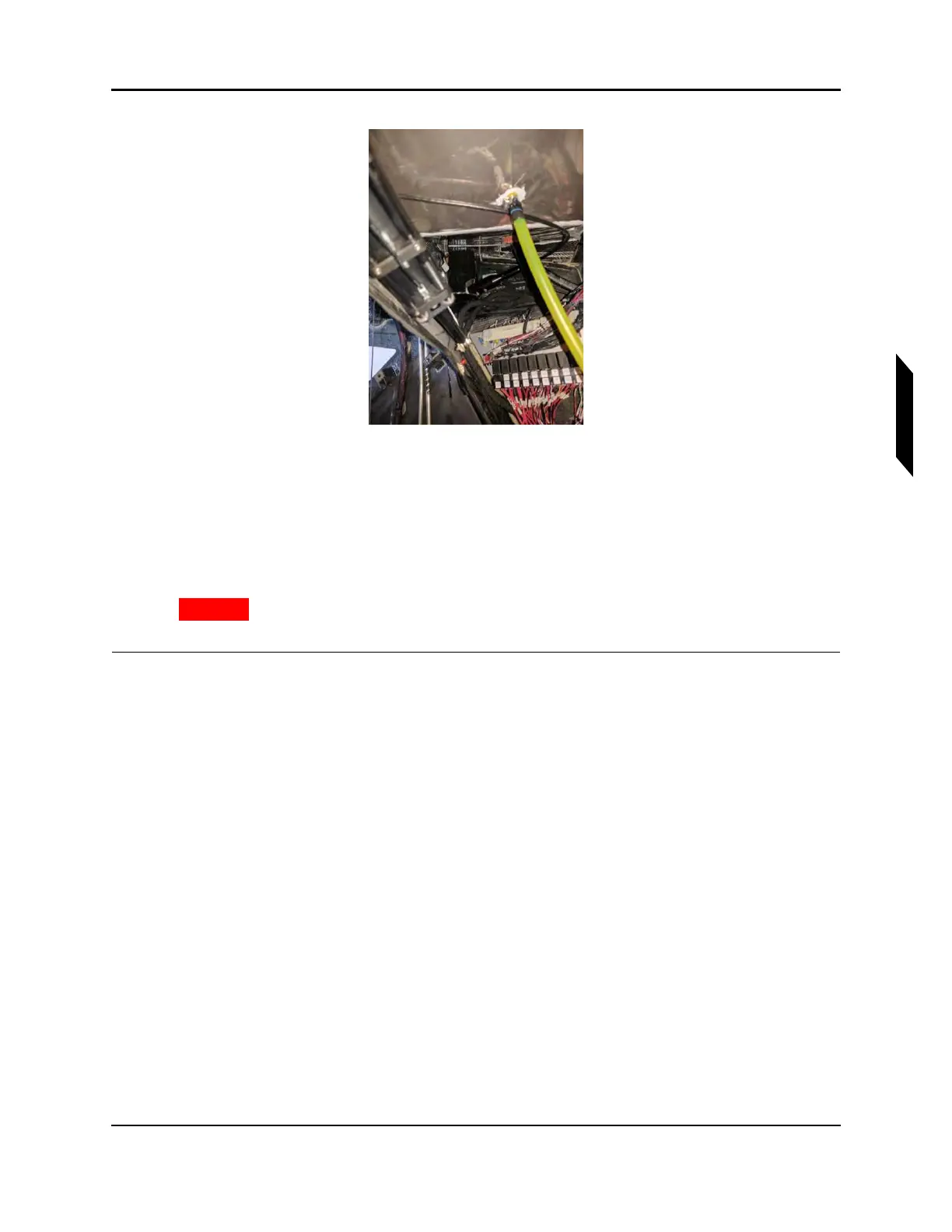

FIGURE 19-30
SECURING ACTIVATION CABLE ROUTING
NOTE: The activation cable can be secured using cable ties or any other
suitable method.
6. Activation cable routed to rocket mount position. After securing the activation cable in the
previous step, the activation cable will be in position to connect to the launch tube cone at the
rocket mounting point.
WARNING: Confirm that the safety pin and flag are installed in the activation
handle before continuing to rocket installation section.
VERIFICATION METHOD:
Verify that the activation cable is properly secured and that the safety pin and flag are correctly
installed on the activation handle.
RELATED INFORMATION:
"Removal and Installation of Inspection Panels and Fairings" on page 3-34
"Cockpit Panels Removal and Installation" on page 3-36
