19-36 ICON PARACHUTE SYSTEM (IPS) / ACTIVATION SYSTEM
ICON A5 / MAINTENANCE MANUAL CHANGE C1

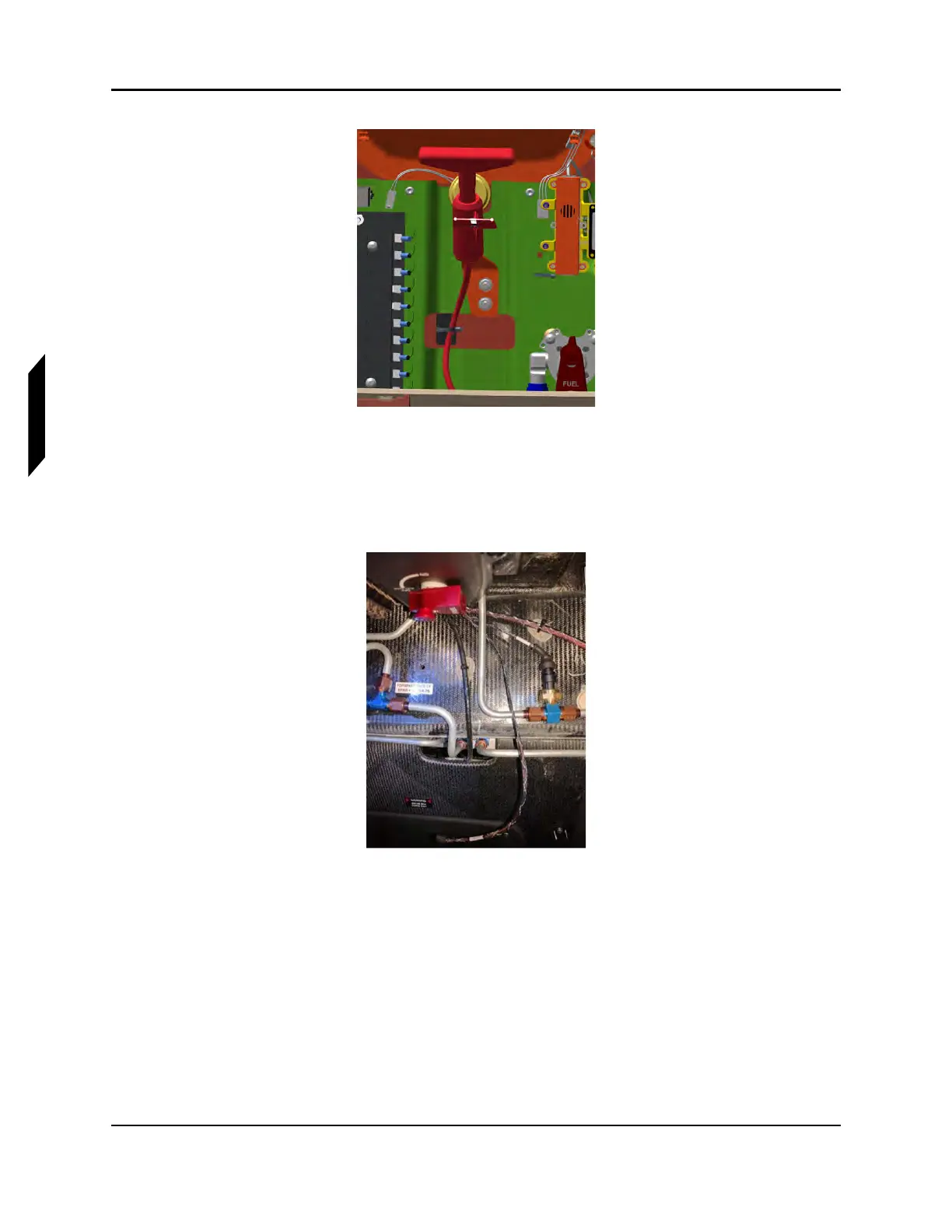

FIGURE 19-28
SECURING ACTIVATION CABLE ROUTING
NOTE: The activation cable can be secured using cable ties.
4. Route the activation assembly. Apply the second cable tie to secure the activation housing to the
cable tie mount. The second cable tie is located on the front side of the center wing skin.
FIGURE 19-29
SECURING ACTIVATION CABLE ROUTING
NOTE: The activation cable can be secured using cable ties or any other
suitable method.
5. The activation cable must also be secured to the firewall drain line using 2 zip ties.
