8.5.3Method(-12):Setabsoluteposition(absolutemeas-
uringsystem)
To set the machine homing point, the rotor or the linear axis is moved to the machine
homing point. The desired actual position is written to the parameter "Offset" P 2234
MPRO_402_Homeoffset. Afterward, the axis must be referenced once. Every time
the axis is started thereafter, the absolute position is calculated automatically. Every
time a new homing operation is initiated, the machine homing point is reset to the
current position.

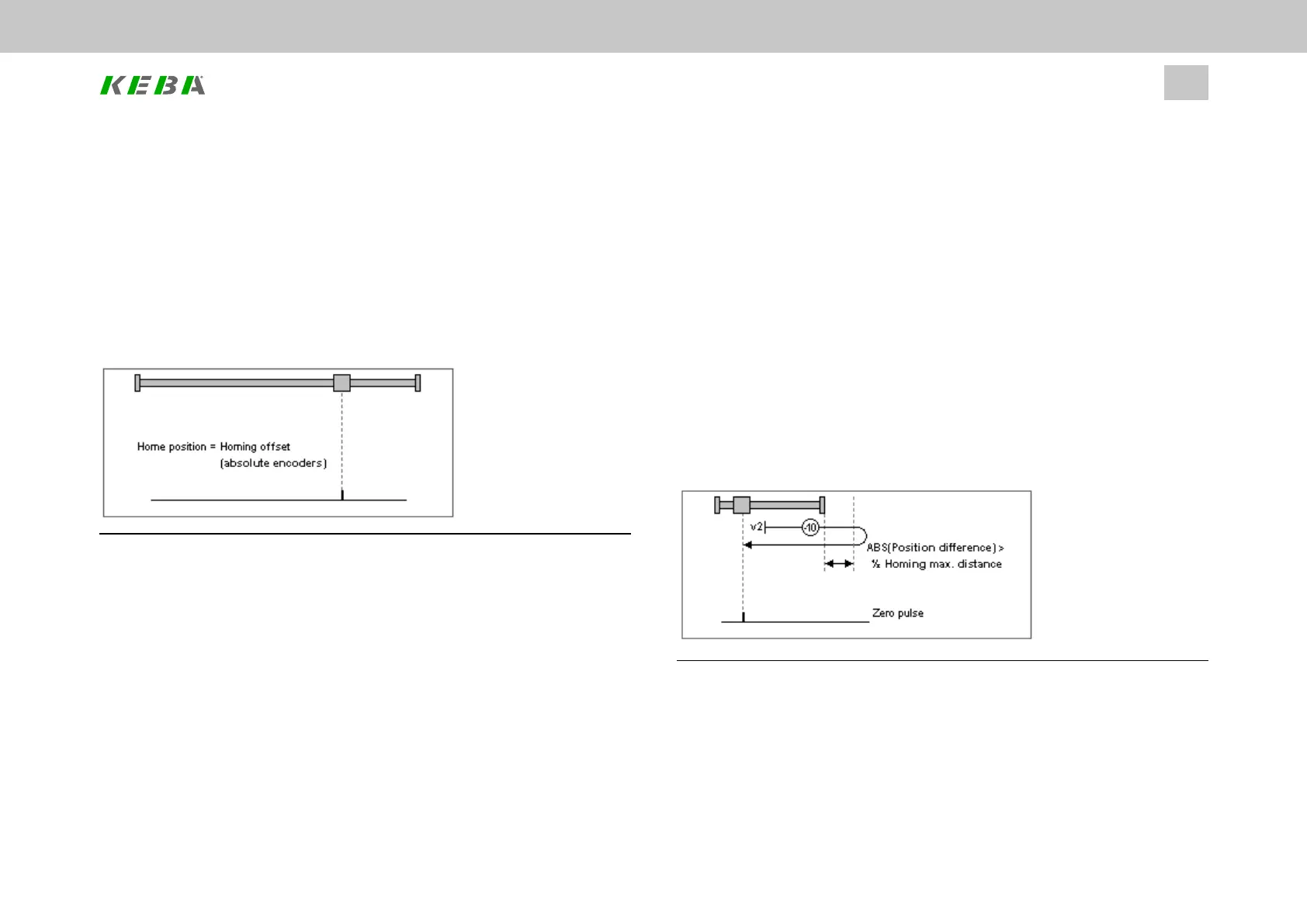

Image 8.40: Set the machine homing point
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
255
8 Motion profile
8.5.4Method(-10)andMethod(-11):Movetoblockwith
zeropulse
Tracking error monitoring is switched off during the homing procedure.
The maximum permissible torque can be reduced specifically during the homing
operation. To do so, parameter P 0225 MPRO_REF_HOMING_TMaxScale must be
set in the range of 0-100%. Note that this parameter replaces parameter P 0332
CON_SCON_TMaxScale during the homing run.
8.5.4.1Method(-10):Rightwarddirectionoftravel
With P 0169 MPRO_REF_HOMING_MaxDistance the positioning range in which to
search for the block is specified. After approaching the block, the drive reverses the
direction of rotation until a zero pulse is detected. The first zero pulse after reversing
direction corresponds to the zero point. An offset can be programmed in the screen.
Image 8.41: Move to block, direction of movement right with zero pulse
8.5.4.2Method(-11):Leftwarddirectionoftravel
With P 0169 P 0169 MPRO_REF_HOMING_MaxDistance the positioning range in
which to search for the block is specified. After approaching the block, the drive
reverses the direction of rotation until a zero pulse is detected. The first zero pulse
