ID Index Name Unit Description
2850 11 decmpRate bar/s Rateforactivedecompression
2850 12 pActScale  ScalingforpAct
2850 13 pAct2Scale  ScalingforpAct2
2850 14 pRange_k % Pressurerangethreshold
2850 15 pRange_midpoint bar Pressurerangemidpoint
Table 7.56: Parameters – Pressure control parameters (continue)
7.11.5Cylinderconfiguration
If no volumetric flow rate sensor is employed, the volumetric flow rate can be
calculated using a linear encoder and the cylinder geometry (P 2840.8 QActCalc).
To do so, various different cylinder dimensions must be passed to the drive
controller . The different surface areas of the piston and ring side must be kept in
mind because either more or less medium is required for the same path depending
on the power direction.
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
190
7 Control

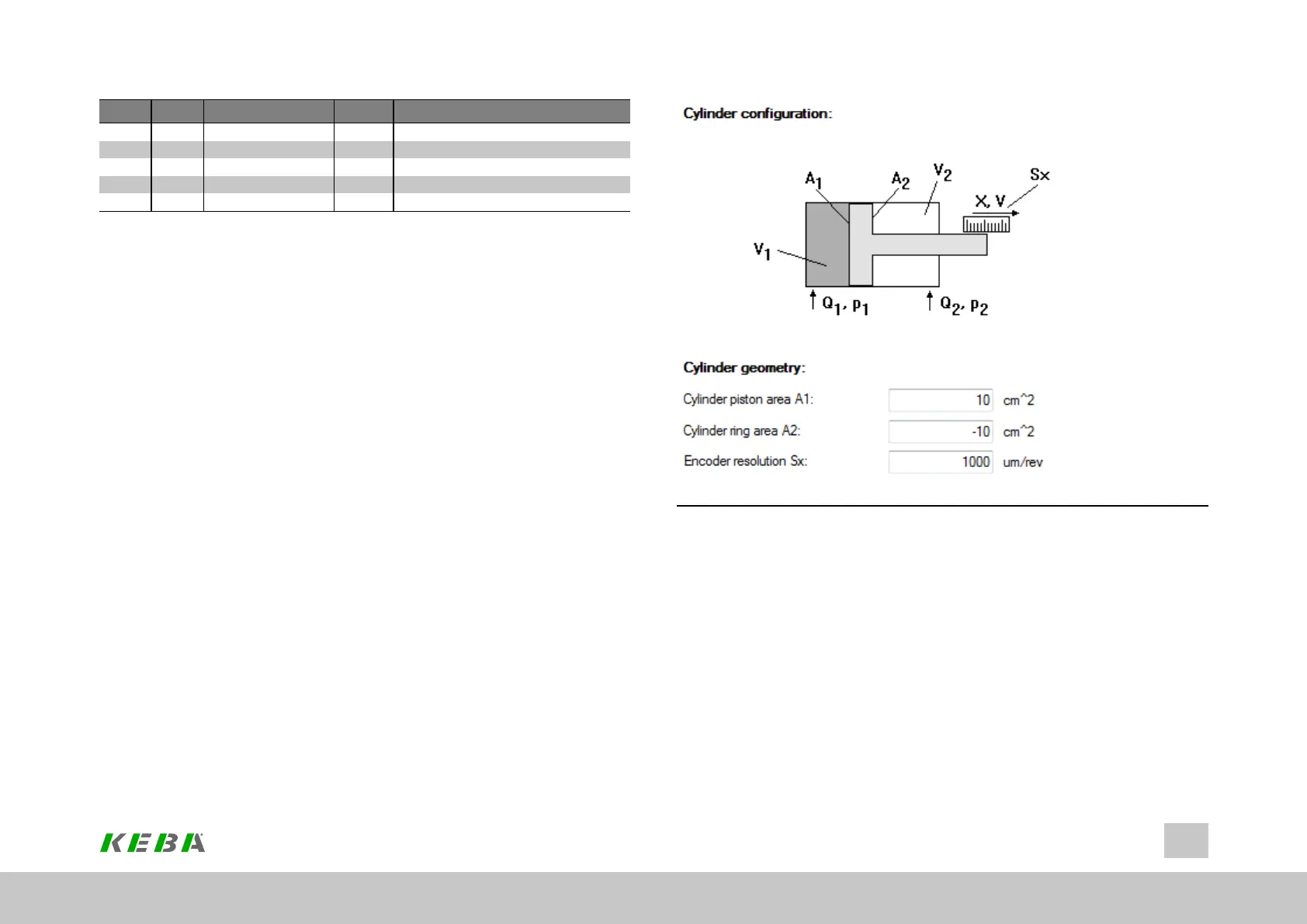

Image 7.64: “Cylinder configuration” screen
The parameters which must be set are P 2852[0] - cylArea1 and P 2852[2] -
cylArea2.
Cylinder piston surface area A1 = cylAreal1 = A1 in cm²
Cylinder ring surface area A2 = cylAreal2 = A2 in cm²
