Automatic inertia detection
Once the safety notice window has been confirmed, the wizard is activated to
determine the mass inertia. When it has been successfully determined, a green tick
(check-mark) is displayed.
See also Section "Automatic inertia detection" on page 114.
Enhanced >>
When you click the “Enhanced >>" button, the wizard provides you with support in
setting up the current, torque, speed and position controllers. If further optimization is
required, the controller buttons route you to more detailed screens.
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
23
3 Initial commissioning
3.3Motor

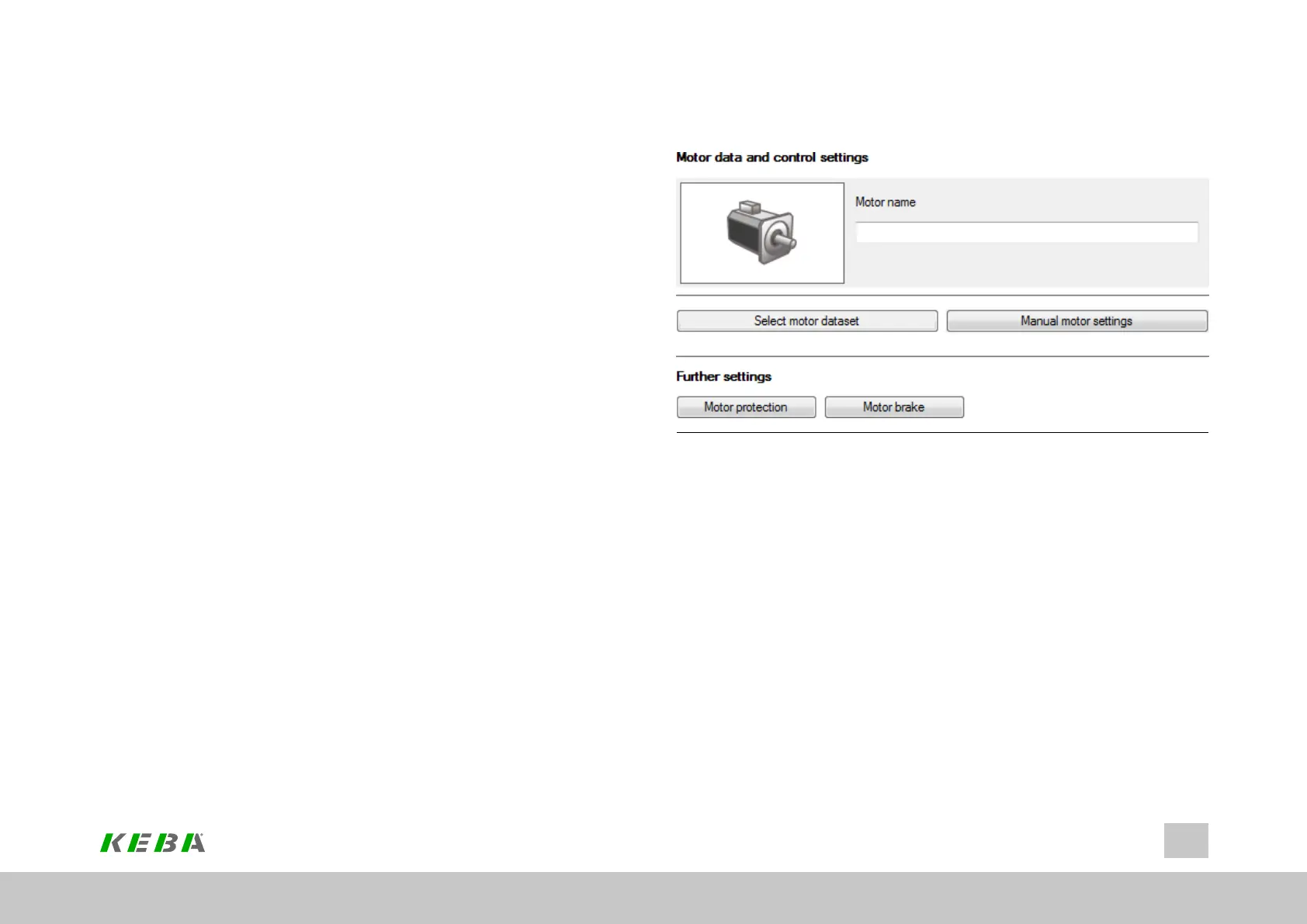

Image 3.5: “Initial Commissioning - Motor data and control settings” screen
l Youcanclickonthe"Select motor data set"toselectamotorfromtheLSH,
LSN,LSPandLSTseriesfromKEBA.
l Ifyouwanttouseadifferentmotor,youcanconfigureitbyclickingonthe
"Manual motor settings"button.FordetailsseeSection"Motorconfiguration
data"onpage32.
l Ifyouneedtoconfigurethetemperatureandcurrentmonitoringmechanism,
clickonthe"Motor protection"button.FordetailsseeSection"Motor
protection"onpage40.
l Toconfigureamotorbrake,clickonthe"Motor brake"button.Fordetailssee
Section"Motorbrakeoutput"onpage321.
