ID Index Name Unit Description
2848  HYD_PosCon  PositionControllerParameters
2848 0 Kp 1/min Gainofpositioncontroller
2848 1 Tn ms Positioncontrolintegrationtimeconstant
2848 2 SFF % Speedfeedforwardscaling
2848 3 PosDiffMax um Positiontrackingerrormonitoring
Table 7.84: “Hydraulic - position control” parameters
7.11.11DigitalfilterHydraulics
For special applications the hydraulics firmware has two biquad filters connected in
series with different input and output variables. For example, acceleration can be fed
back to the position controller.
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
209
7 Control

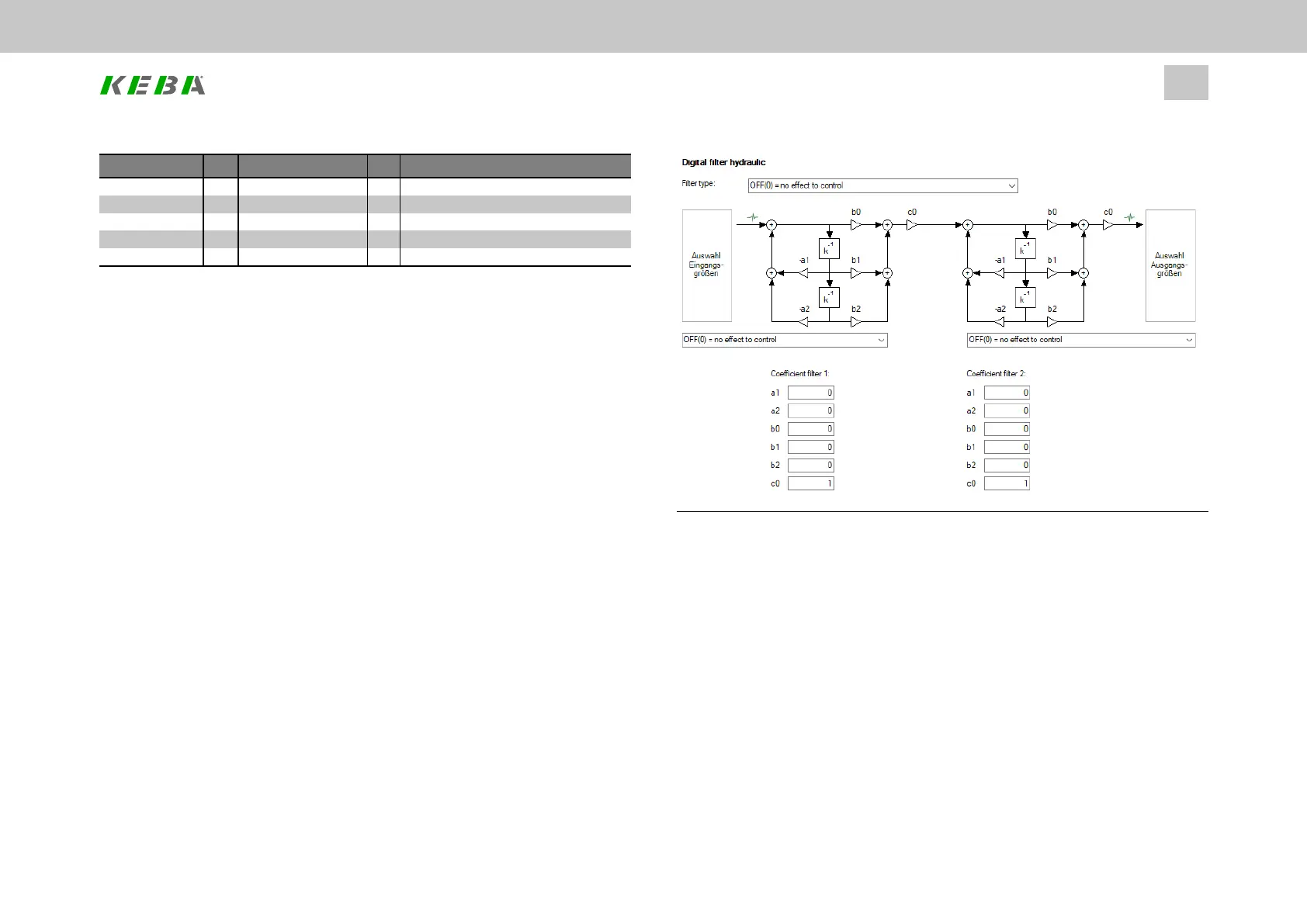

Image 7.80: Digital Filter Hydraulics Screen

Via P2876 HYD_AdvFilSel the filter can be activated and the input and output sizes
can be selected.
The actual pressure value P2843.1 pressAct in bar or the cylinder speed P2843.23
ActSpd in rpm (Cyl_nAct(2)) or in mm/s (Cyl_ActSpd(3)) are available as input
variables.
An additive speed setpoint (nFF(1)) or volume flow rate setpoint (volFF(2)) can be
selected at the filter output. The speed reference value is connected to the output of
the pressure control and the cylinder speed control. Selecting volFF(2) acts at the
output of the pressure control with volumetric flow rate output and the subordinate
