Keba ServoOne User Manual

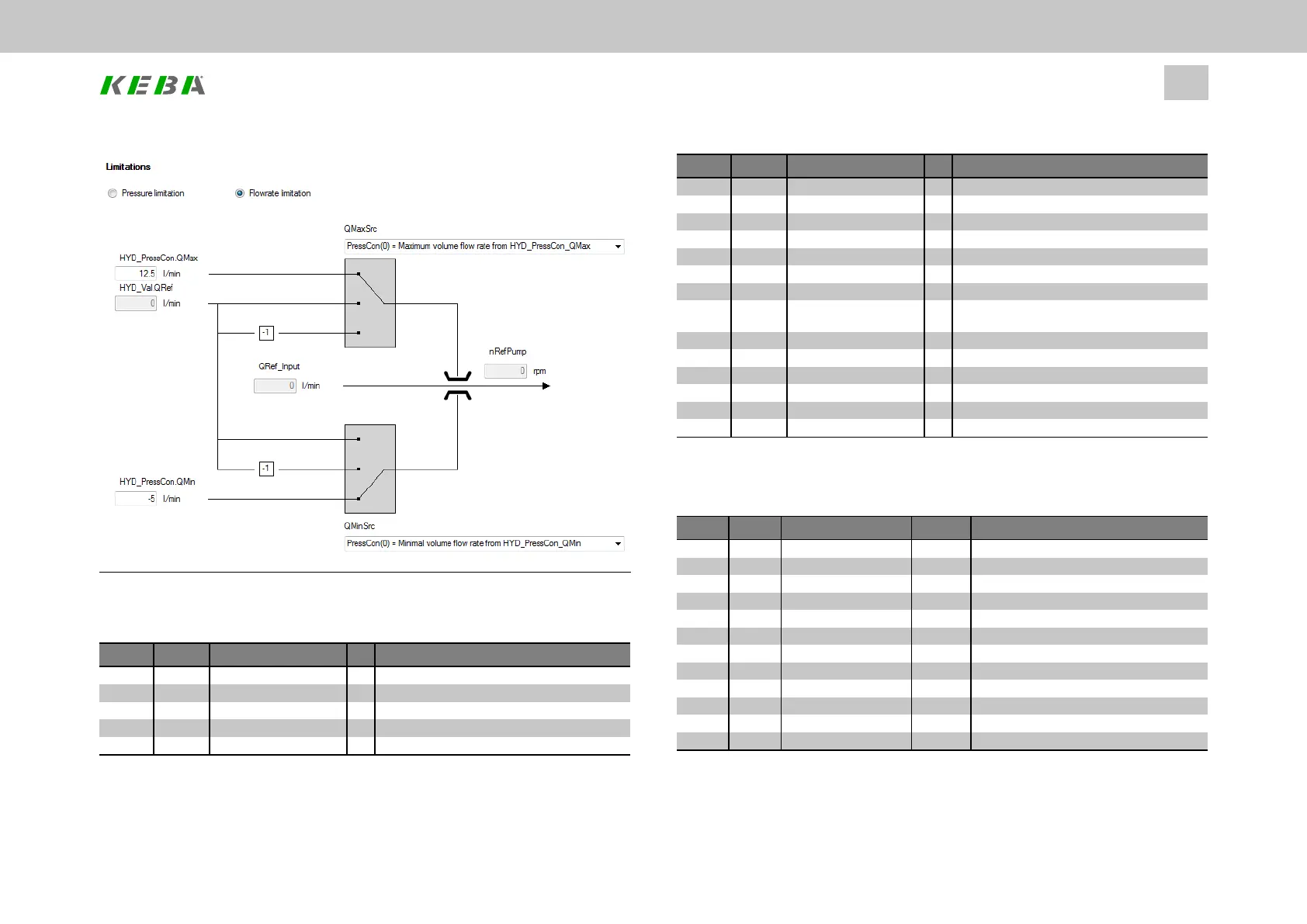

Image 7.63: “Volumetric flow rate limit ” screen

ID Index Name Unit Description
2840  HYD_Cfg  ConfigureHydraulicSystemControl
2840 0 Reserved  Reserved
2840 1 pRefSrc  Hydraulic:Selectionofthepressurereferencevalues
2840 2 QRefSrc  Flowrate,selectionofreferencesource
2840 3 pActCalc  Hydraulic:Pressureactualvaluecalculationmethod
Table 7.55: Parameters – Configure Hydraulic System Control
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
189
7 Control
ID Index Name Unit Description
2840 4 pMinSrc  Minimumpressuresourceselector
2840 5 pMaxSrc  Maximumpressuresourceselector
2840 6 QMinSrc  Minimumflowratesourceselector
2840 7 QMaxSrc  Maximumflowratesourceselector
2840 8 QActCalc  Flowratecalculationmethod
2840 9 QLeakEst  Flowrateleakageestimationmethod
2840 10 nRefSrc  Pumpspeedreferencesourceselector
2840 11 CylValveSwSel  Functionselectorforthevalveswitchoverofthe
cylinder
2840 12 AltPosCon  Alternativepositioncontroller
2840 13 AltSpdCon  Alternativecylinderspeedcontrollers
2840 14 PumpSpdProt  Pumpspeedprotection
2840 15 PumpP2tProt  p2tprotectionforpump
2840 16 AltPressCon  Alternativepressurecontroller
2840 17 AltPressConLimit  Alternativepressurelimitcontroller
Table 7.55: Parameters – Configure Hydraulic System Control (continue)

ID Index Name Unit Description
2850  HYD_PressCon  Hydraulicpressurecontrolparameters
2850 0 Kp rpm/bar Gain
2850 1 KpScale  Gainscaling
2850 2 Tn ms Integrationtimeconstant
2850 3 Tv ms Ratetime
2850 4 Tp ms Integral-actiontime
2850 5 pMin bar Minimumpermissiblepressure
2850 6 pMax bar Maximumpermissiblepressure
2850 7 QMin l/min Minimumflowrate
2850 8 QMax l/min Maximumflowrate
2850 9 PressWindow bar Pressurecontrolparameters
2850 10 decmpLvl bar Levelforactivedecompression
Table 7.56: Parameters – Pressure control parameters
