Configuring Technician Laptop Access for Remote RMX-3200: Configuration Overview
13-2
Configuration Overview

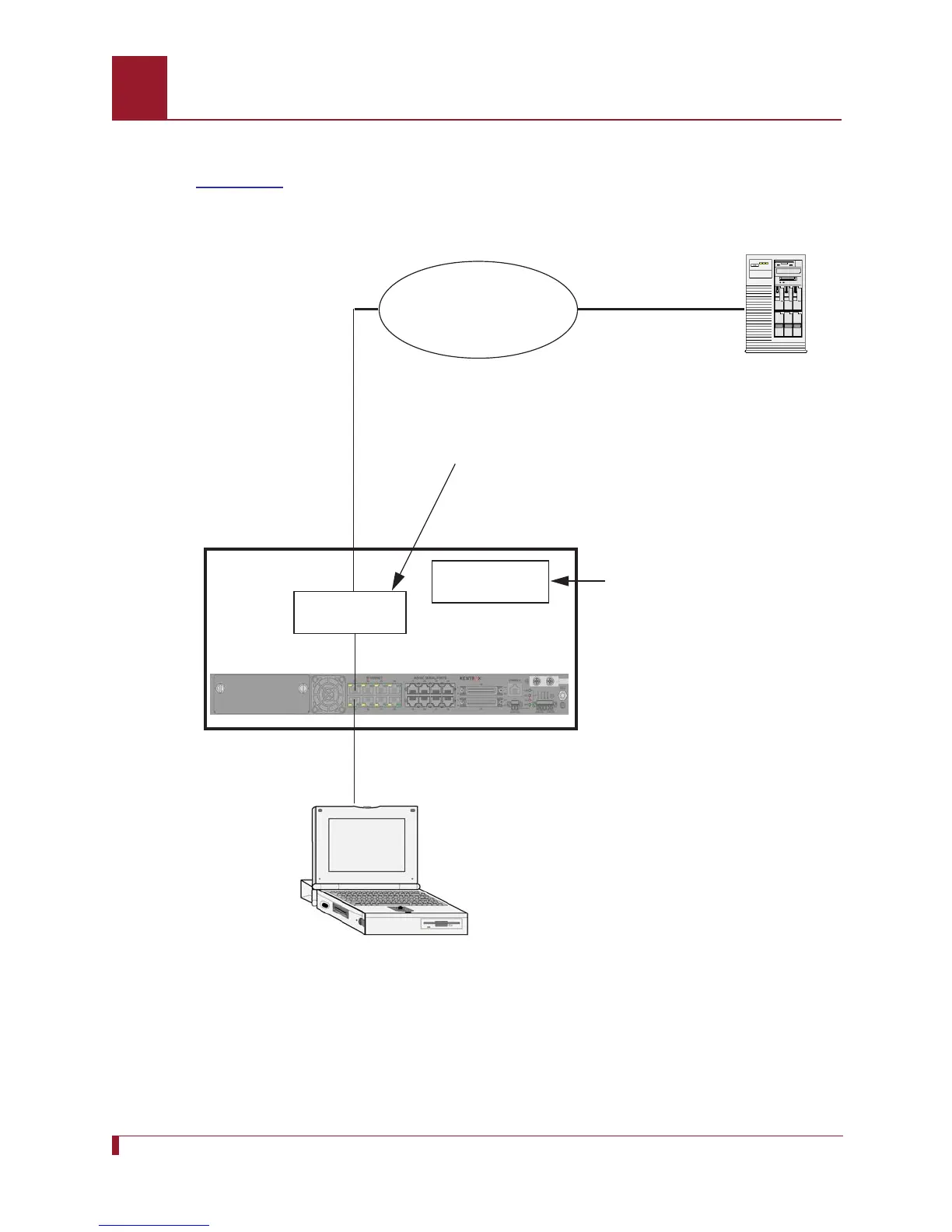

Figure 13-1 displays what happens when a technician’s laptop accesses the network
by connecting to Remote RMX-3200.
Figure 13-1 Technician Laptop Access via Remote RMX-3200
IP Network
Server
Technician Laptop
IPTables
Remote RMX-3200
64.152.3.27
DHCP Server
10.10.10.12 (Private Address)
The DHCP Server
assigns a private IP
address to the
technician laptop.
(184.155.22.36)
(Public Address)
IPTables rules allow laptops
on the private network to
send packets to the WAN with
Remote RMX-3200’s public address.
