Expansion Units and Peripherals
The Remote products can support up to 12 Expand units (four shelves), which
provide additional alarm and port capacity.
This section provides a high level view of the expansion units and associated
peripherals. Details on configuring the peripherals are covered in
Chapter 25:
Configuring the Peripheral Management Subsystem.
Expand-D Expansion Unit
The Discrete Expansion unit, known as the Expand-D, consists of four I/O ports as
shown in
Figure 1-4. These ports provide the following functionality:
 64 digital inputs
 16 analog inputs
 8 digital outputs
The Expand-D connects to Remote RMX-3200 via Ethernet. The unit has no
intelligence; it is configured and controlled from the host Remote RMX-3200.
For details on configuring the Expand-D expansion unit, see
Expand-D Expansion
Unit on page 25-2.

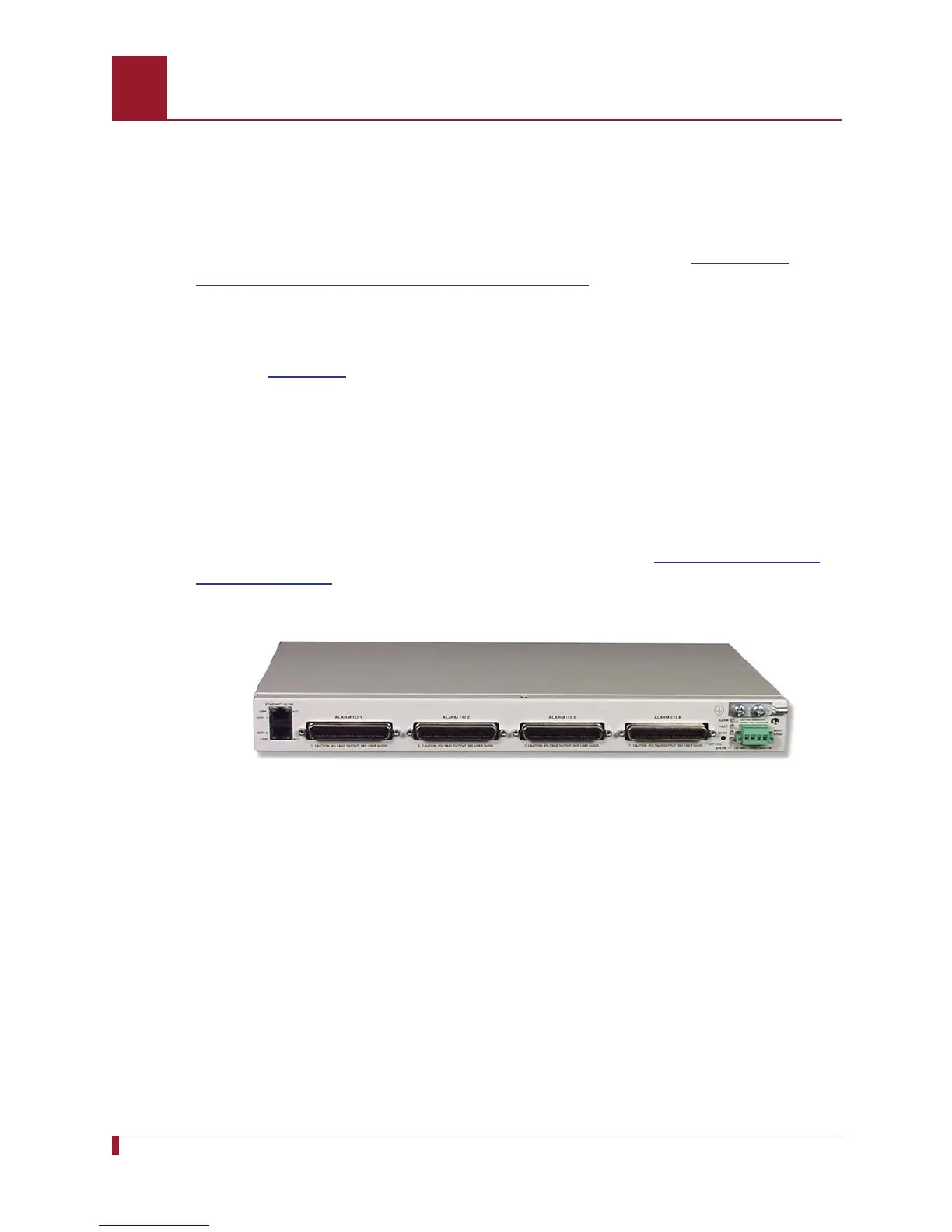

Figure 1-4 Expand-D Expansion Unit
