Peripheral Management Subsystem Overview
The peripheral management subsystem lets Remote RMX-3200 manage up to 12
discrete expansion units and peripherals. Expand peripherals provide additional
alarm and port capacity that is easily managed through the Remote RMX-3200
Command Line Interface.
Expand-D Expansion Unit
Expand-D expansion units allow the user to add digital inputs, analog inputs and relay
outputs to Remote RMX-3200. Expand-D contains the following inputs and outputs:
 64 digital inputs
 16 analog inputs
 8 relay outputs
Figure 25-1 displays the Expand-D expansion unit.

Note: Users can physically connect an Ethernet cable to Expand-D. However, they
cannot directly log into or communicate with Expand-D.

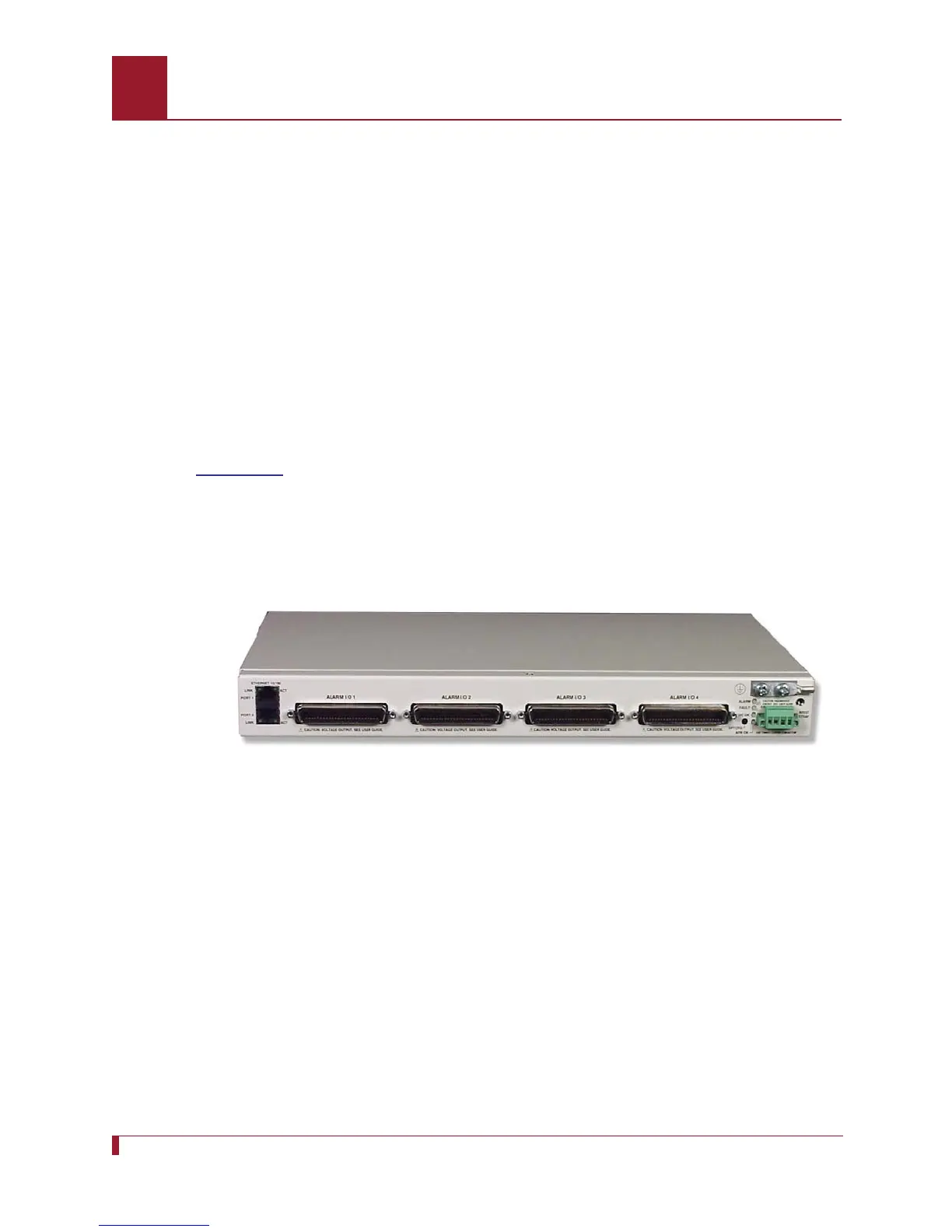

Figure 25-1 Expand-D Expansion Unit
