Remote RMX-3200 Version 5.2x Configuration Guide
Configuring the Peripheral Management Subsystem: Peripheral Management Subsystem Overview
25-6
RME-1000 Connections
The following characteristics apply to the RME-1000 unit when it is connected to
Remote RMX-3200:
 All connections from Remote RMX-3200 to RME-1000 are via Ethernet.
 Two external switched Ethernet ports are available for connections.
 User devices can connect to the open Ethernet port on RME-1000.
 RME-1000 does not run the Spanning Tree Protocol (STP) on its Ethernet ports.
Important: Because RME-1000 does not run STP, users should never network
RME-1000 units in an environment where Ethernet switching loops
can exist.
Remote RMX-3200 Expansion Slot
Remote RMX-3200 also consists of an expansion slot, which can contain any one of
the RME-1000 peripherals.

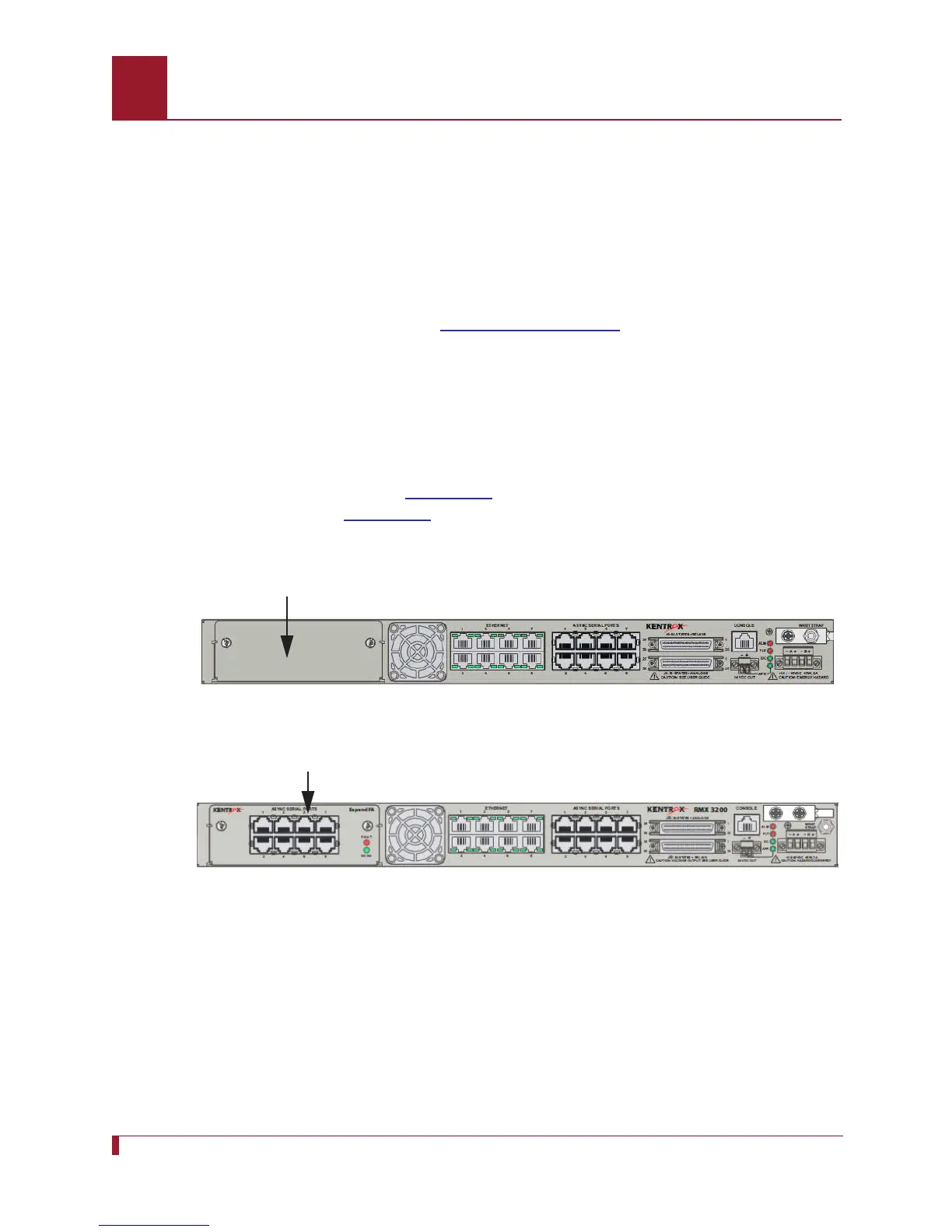

Figure 25-5 shows the Remote RMX-3200 with an empty
expansion slot and
Figure 25-6 shows Remote RMX-3200 with the addition of the
RME-S8 peripheral.
Figure 25-5 Remote RMX-3200 Module with Empty Expansion Slot
Figure 25-6 Remote RMX-3200 Module with RME-S8 Peripheral
Expansion Slot
RME-S8 Peripheral
