RMB Peripheral Units
RMB-1
The RMB-1 peripheral unit (shown in Figure 1-6) can be connected to and powered
from one of Remote RMX-3200’s PoE-capable Ethernet ports. RMB-1 adds the
following connectors and counts:
 64 digital bistate inputs
 Four relay outputs
 Four current inputs (4-20 mA)
 Four voltage inputs (0-10V, positive only)
 Two relay sockets with punchdown blocks
 A four-terminal SiteBus
 Four sets of auxiliary terminals, which are not electrically connected to other
RMB-1 I/O terminals
 Built-in temperature and humidity sensors

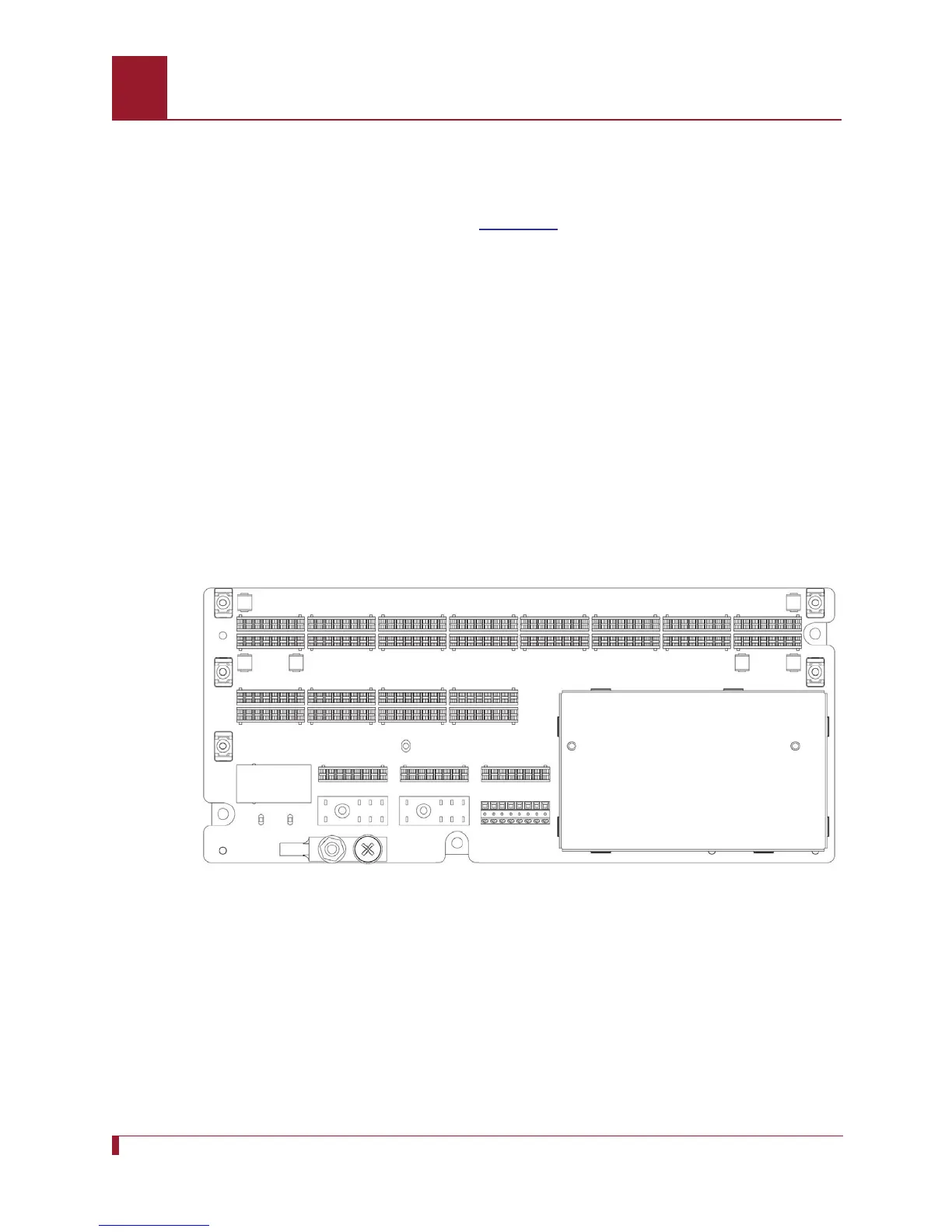

Figure 1-6 RMB-1 Peripheral Unit
