Expansion Unit Configurations
Expansion units can be connected to Remote RMX-3200 in several different
configurations:
 By daisy-chaining them together
 By connecting them to individual Remote RMX-3200 Ethernet ports
 By connecting them to a third-party Ethernet switch
Figure 25-10 displays three expansion units daisy-chained together, which is the most
common configuration.

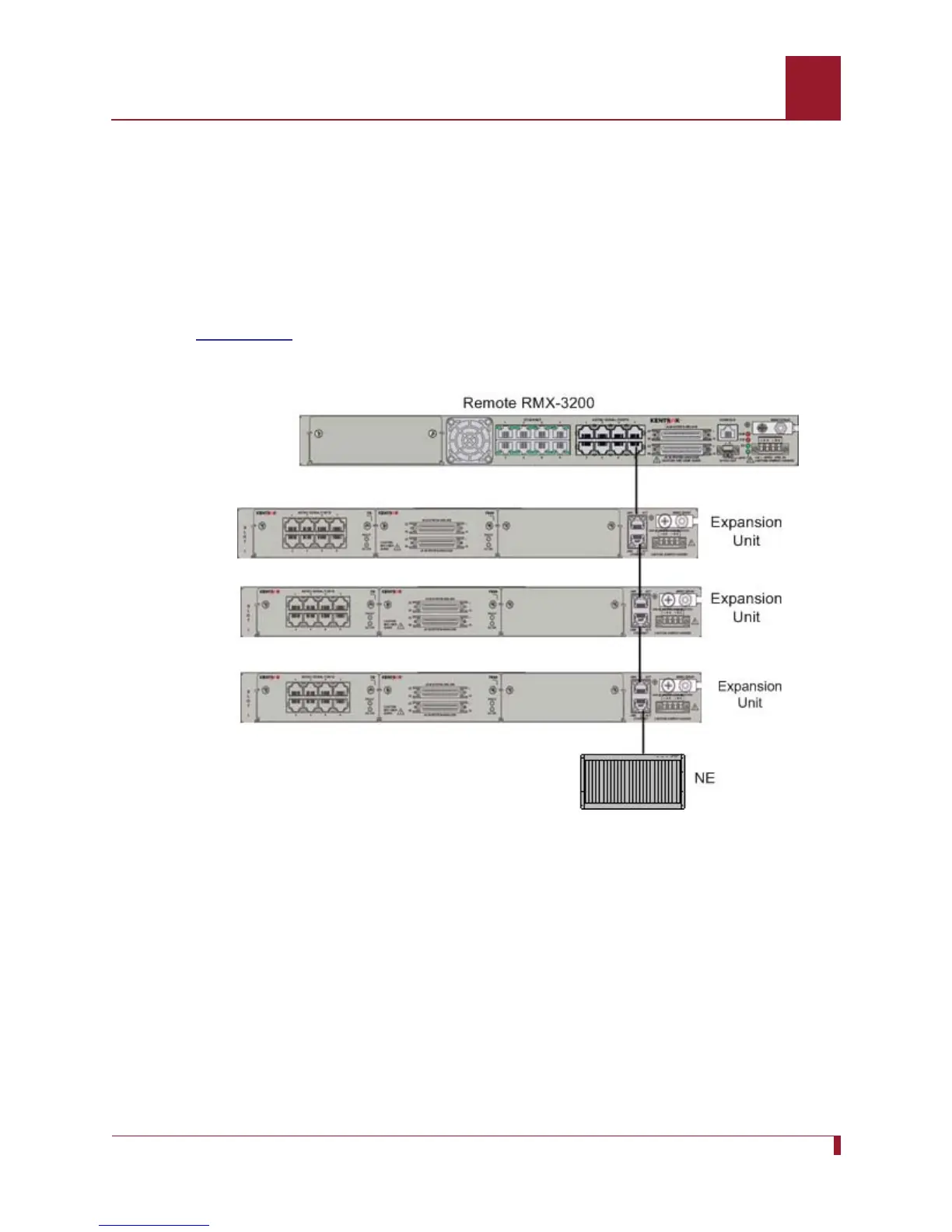

Figure 25-10 Expansion Unit Daisy-Chain Configuration
