Remote RMX-3200 Hardware Configuration
Figure 1-2 shows the Remote RMX-3200 base unit, which consists of the following
connectors and counts:
 8 Ethernet ports provide for connections into your network. Ports 1 and 2 can be
used as standard ports and can also provide 48V PoE to 802.3af-compliant
devices.
 8 serial ports provide connectivity to any asynchronous device and can be used
as part of the Telnet to asynchronous protocol mediation application.
 64 discrete ports, 12 analog inputs and 4 control outputs.
 A console port provides local asynchronous access for configuration and
diagnostics from a laptop or PC.

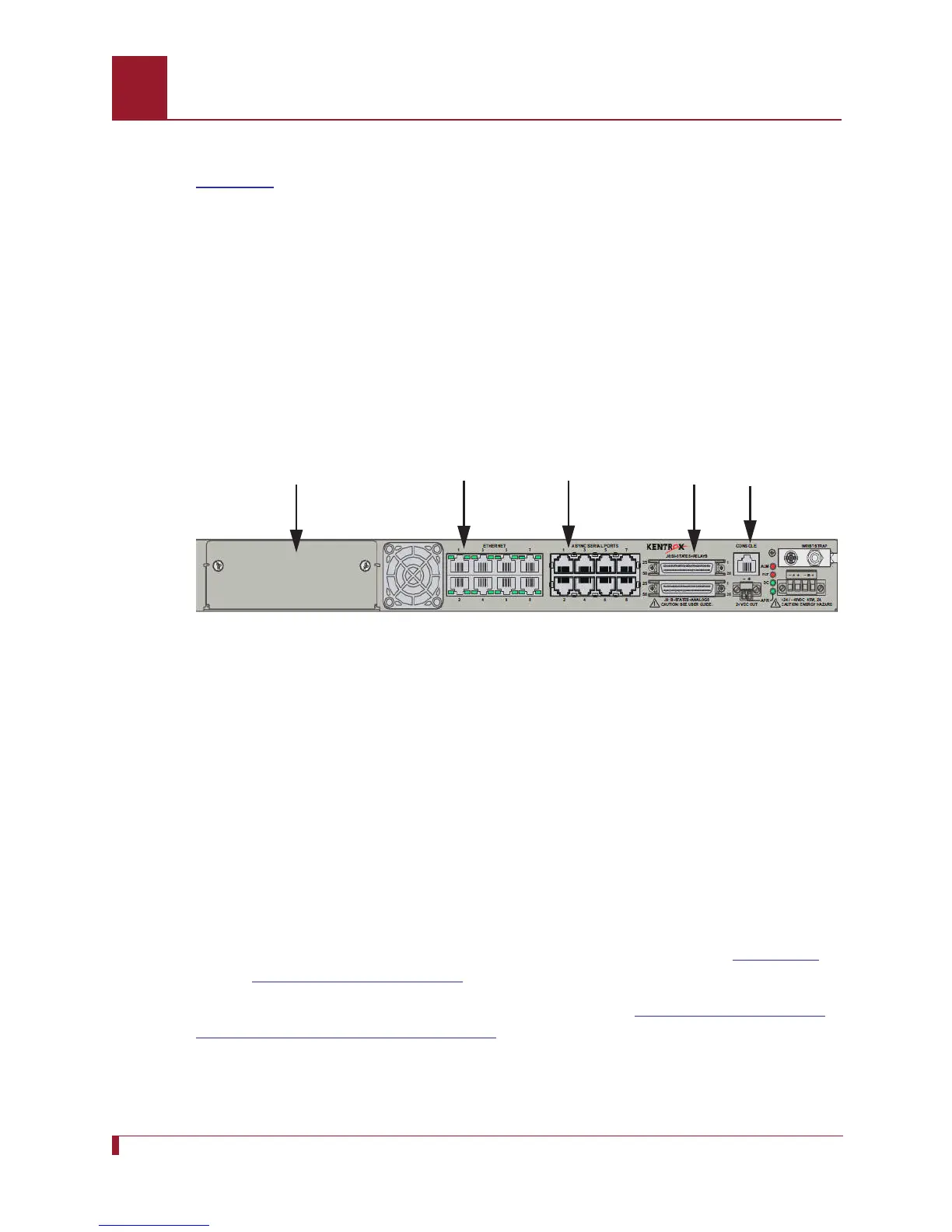

Figure 1-2 Remote RMX-3200 Base Unit
Expansion Slot
Remote RMX-3200 has no built-in WAN interfaces, but has a modular expansion slot
for any one of the following RME-1000 or WAN peripherals.
RME-1000 Peripherals
 RME-S8 peripheral provides eight asynchronous serial ports
 RME-B64 peripheral provides 80 I/O ports
 RME-E8 peripheral provides eight Ethernet ports

Note: Remote RMX-3200 can also be expanded with additional RME-1000 units,
which contain any of the individual RME-1000 peripherals. See
RME-1000
Expansion Unit on page 1-7.
For details on configuring the RME-1000 peripherals, see Chapter 25: Configuring
the Peripheral Management Subsystem.
Expansion Slot
8 Ethernet Ports
8 Serial Ports 64 Discrete Ports Console Port
