Repair information 4-39

5026

Go Back

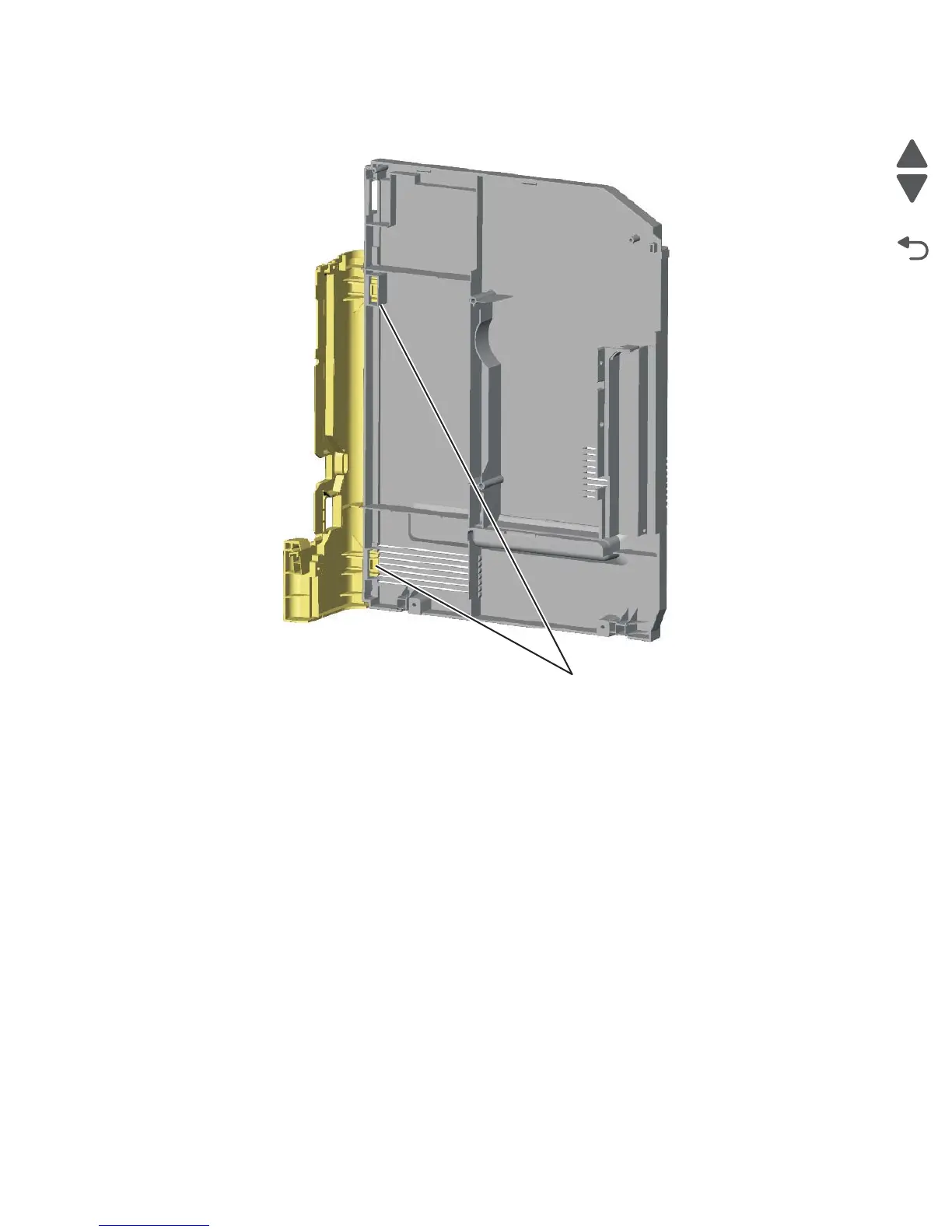

11. Press the two tabs (F) to separate the right cover from the rear right cover.
