Repair information 4-57
5026
Left cartridge guide wheel
Note: Only replace defective cartridge guide wheel(s).
1. For yellow, cyan, or magenta:

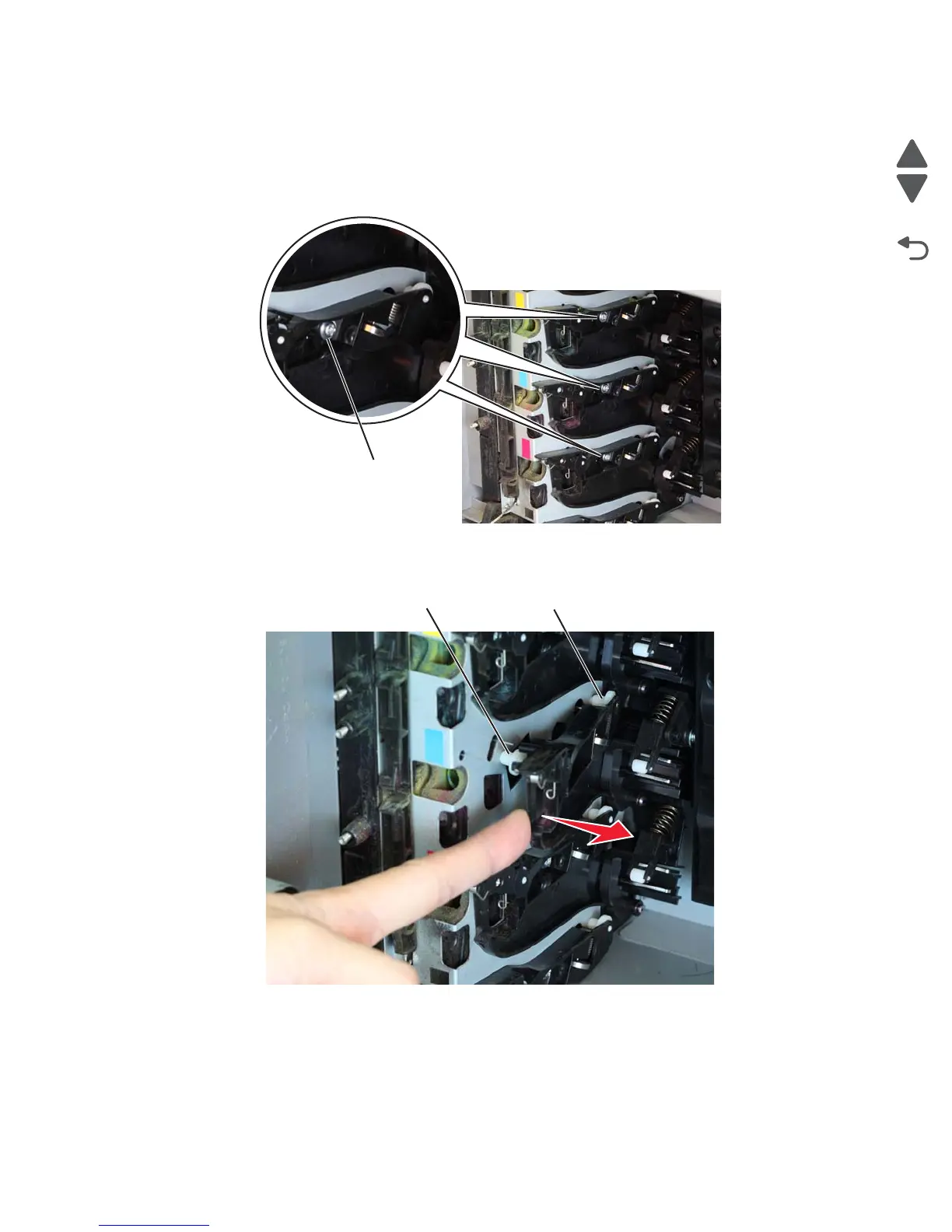

a. Remove the two screws (A) from the cartridge guide.
b. Gently pull the cartridge guide, then remove the front (B) or rear (C) cartridge guide wheel.
CAUTION: Do not pull too hard on the cartridge guide to avoid damage.
Note: When replacing either the front or rear cartridge guide wheel, be careful to not let the non-
defective cartridge guide wheel fall off.
