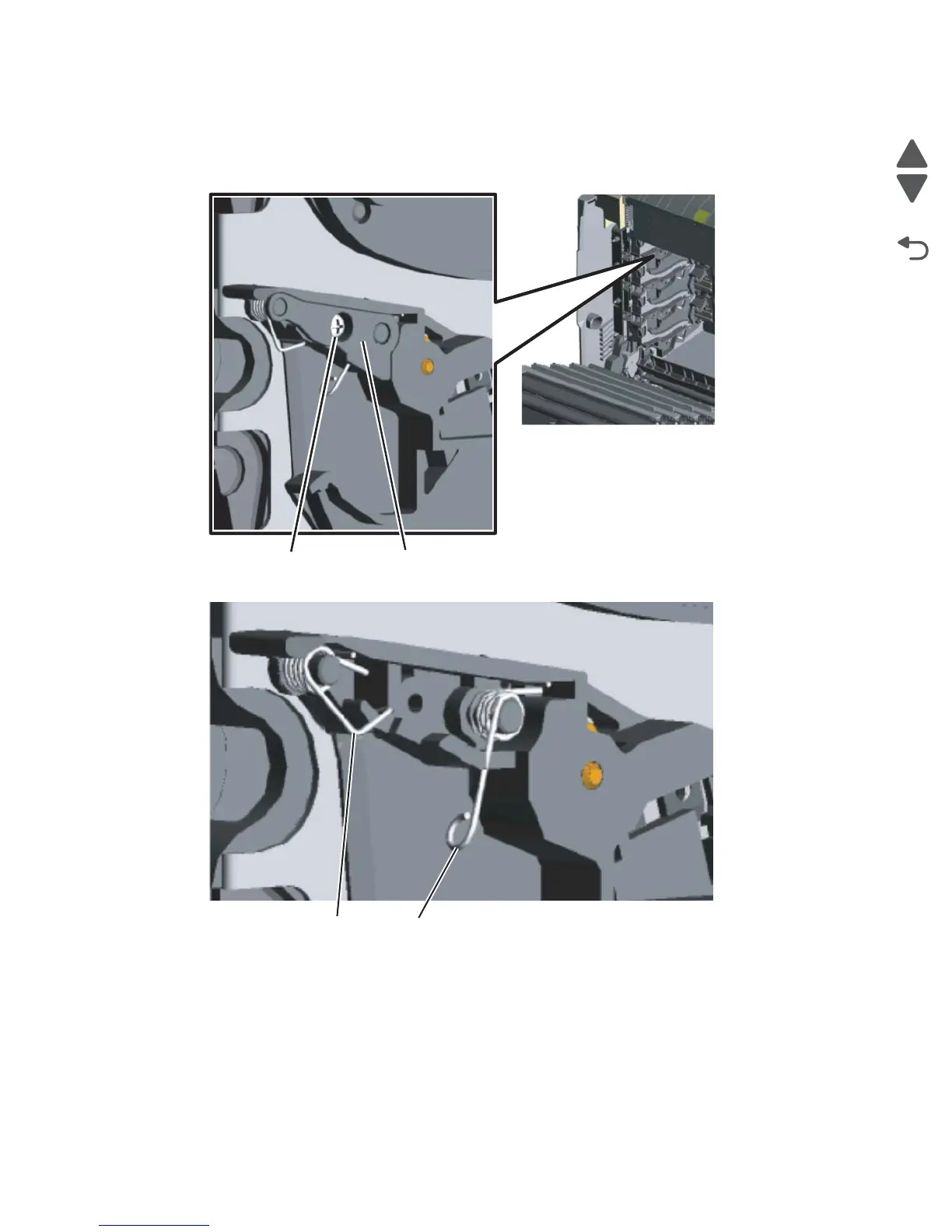

Torsion spring removal

Remove all the toner cartridges.

2. Remove the screw (A) and the spring cap (B) of the appropriate contact spring.

3. Press the lower half (C, D) of the springs, and remove the springs.
