Repair information 4-129

5026

Go Back

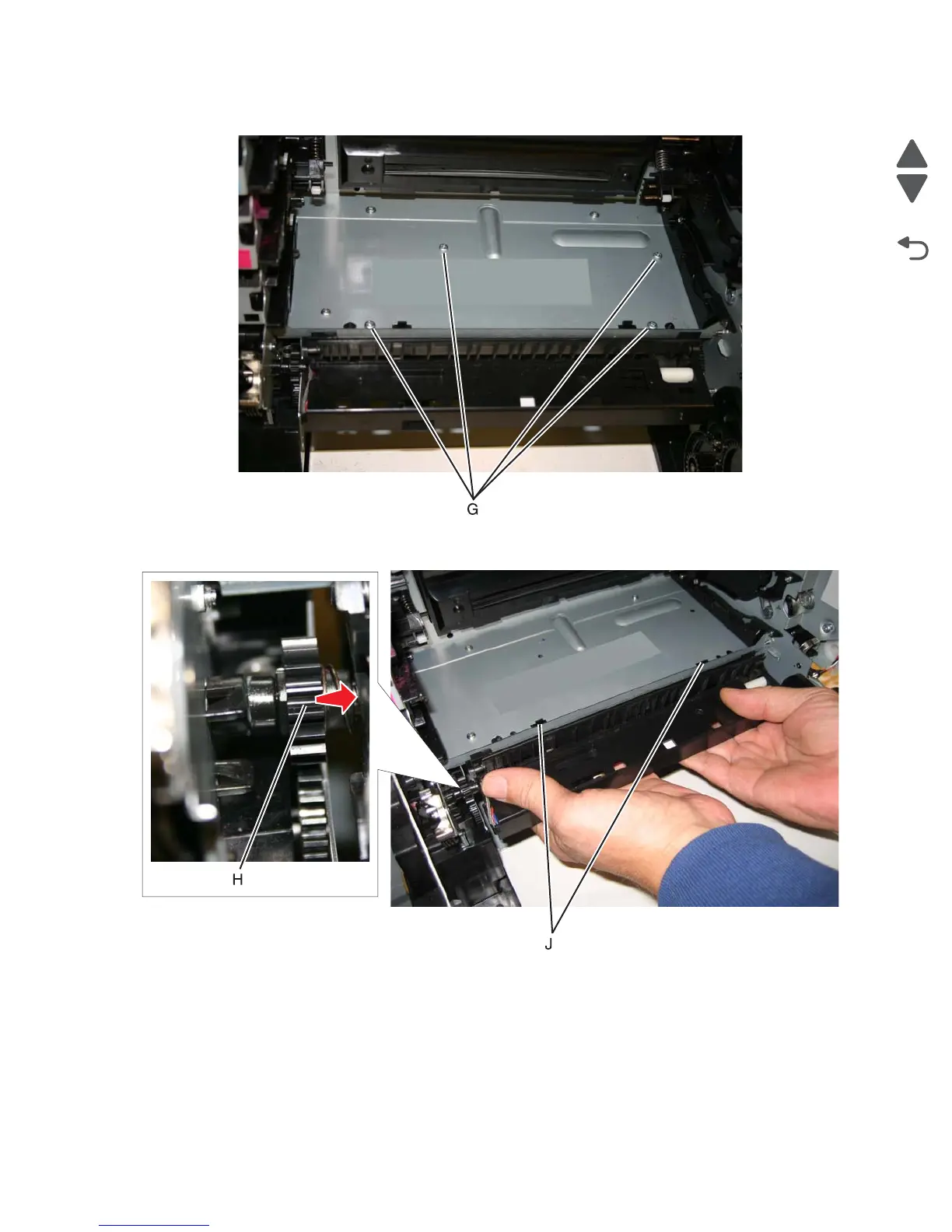

9. Remove the four screws (G) from the bottom pan.

10.With one hand, disengage the gear (H), then grasp the paper pick assembly, and pull forward and

downward to disengage the assembly until the front (J) and rear locking tabs release (not visible).
