Repair information 4-139

5026

Go Back

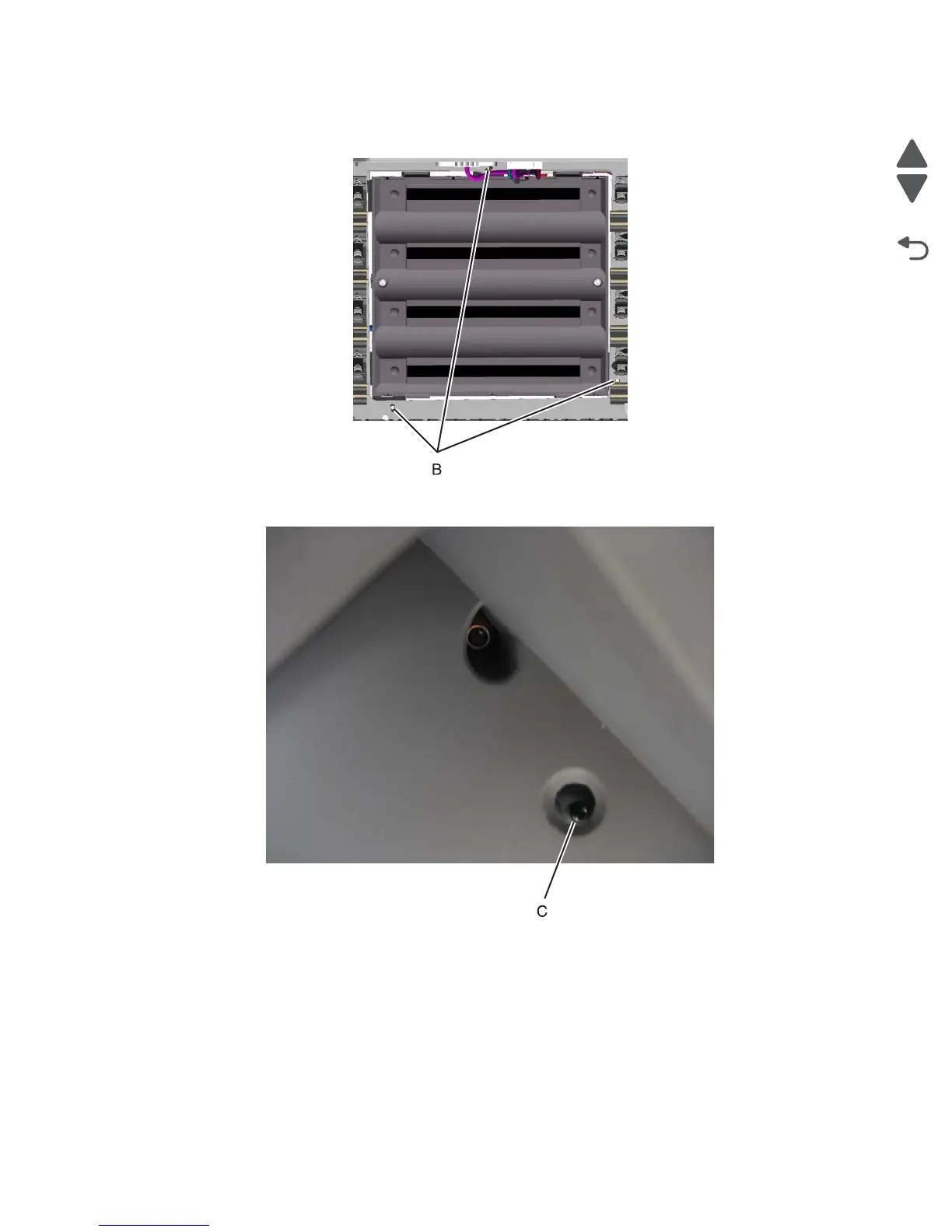

2. Loosely attach the three printhead mounting screws (B).

Warning: Do not fully tighten the printhead mounting screws until skew has been adjusted.

3. Lightly tighten the alignment screw (C).

4. Feed the ground cable through the hole in bottom leftside frame.
