4-166 Service Manual
5026

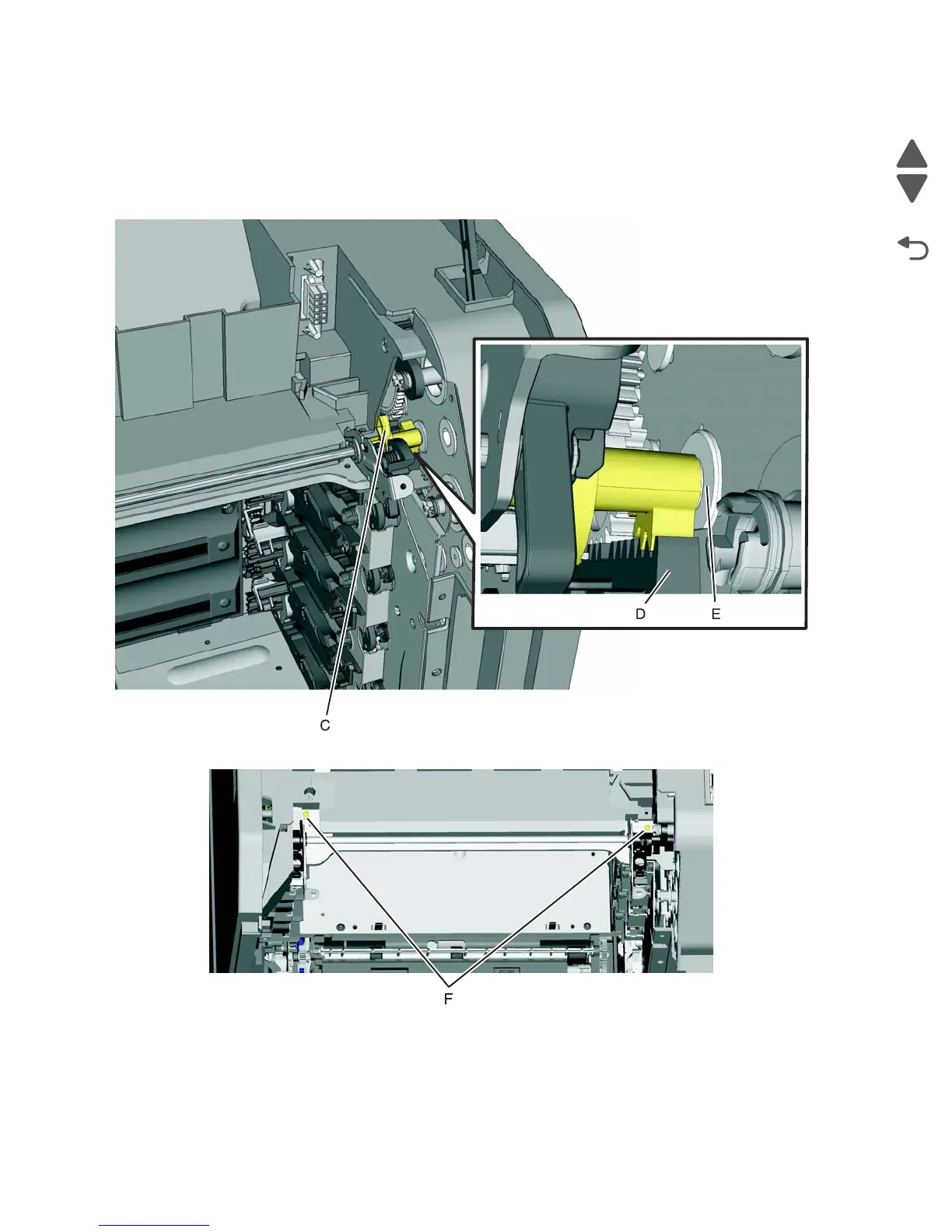

2. Rotate the camshaft up using the camshaft actuator handle (C), and make sure the gears on the right side
mesh so the first gear tooth of the camshaft aligns with the first two gear teeth of the EP drive actuator
rack (D).
Note: Make sure the actuator rack on the EP drive is all the way back.
3. Flex the EP drive on the right to seat the end of the shaft into the boss (E) on the EP drive.
4. Make sure the left and right camshaft brackets are fully seated, and replace the two screws (F).
