Lexmark C734dn Service Manual

4-182 Service Manual
5026
Go Back
Previous
Next

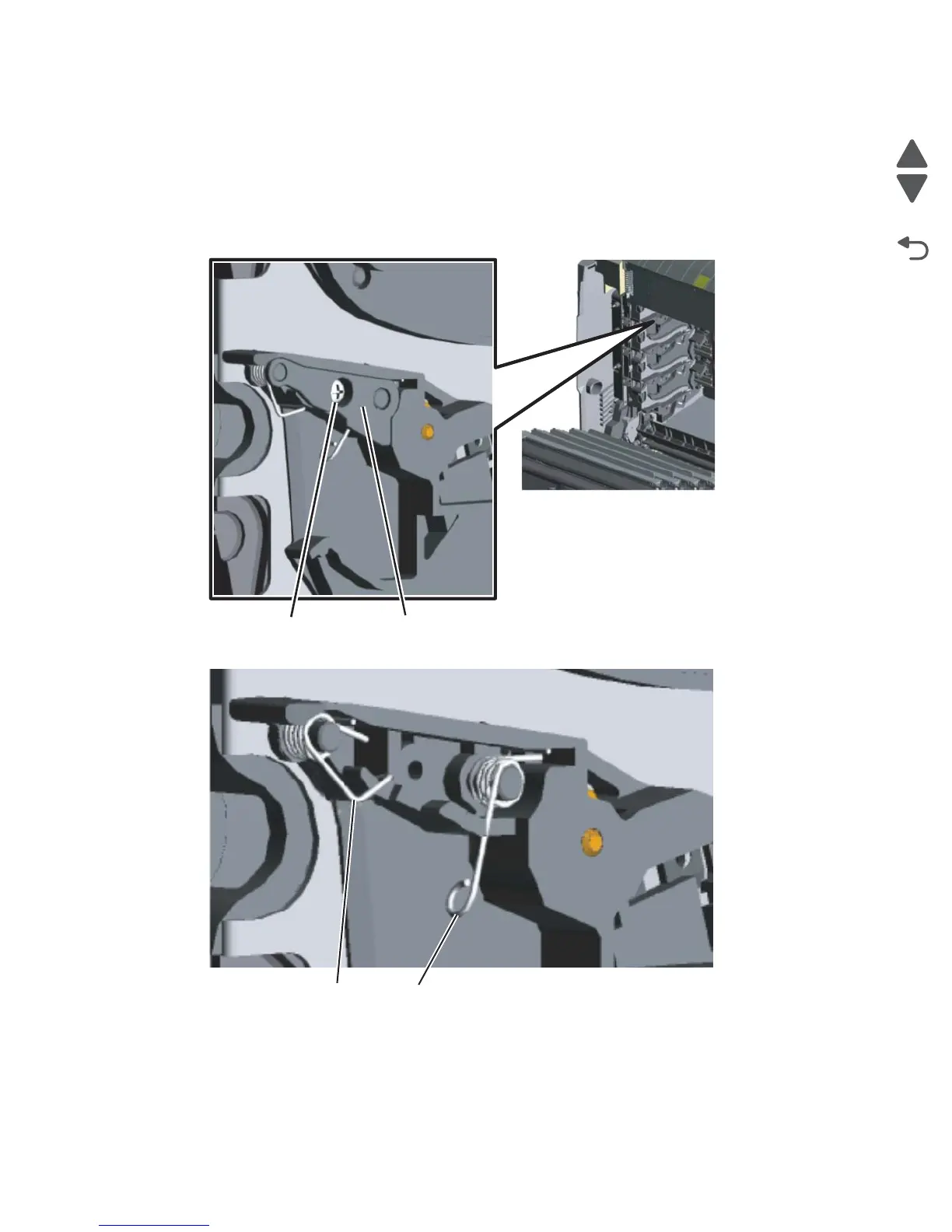

Installation note: Do the following procedures when re-installing the waste tone HV contact assembly:
1. Remove the fuser.
2. Remove all four toner cartridges
3. Remove the four sets of torsion springs. Remove the screw (A) and the spring cap (B) of the appropriate
contact spring.
4. Press the lower half (C,D) of the springs, and remove the springs.
BA
DC
