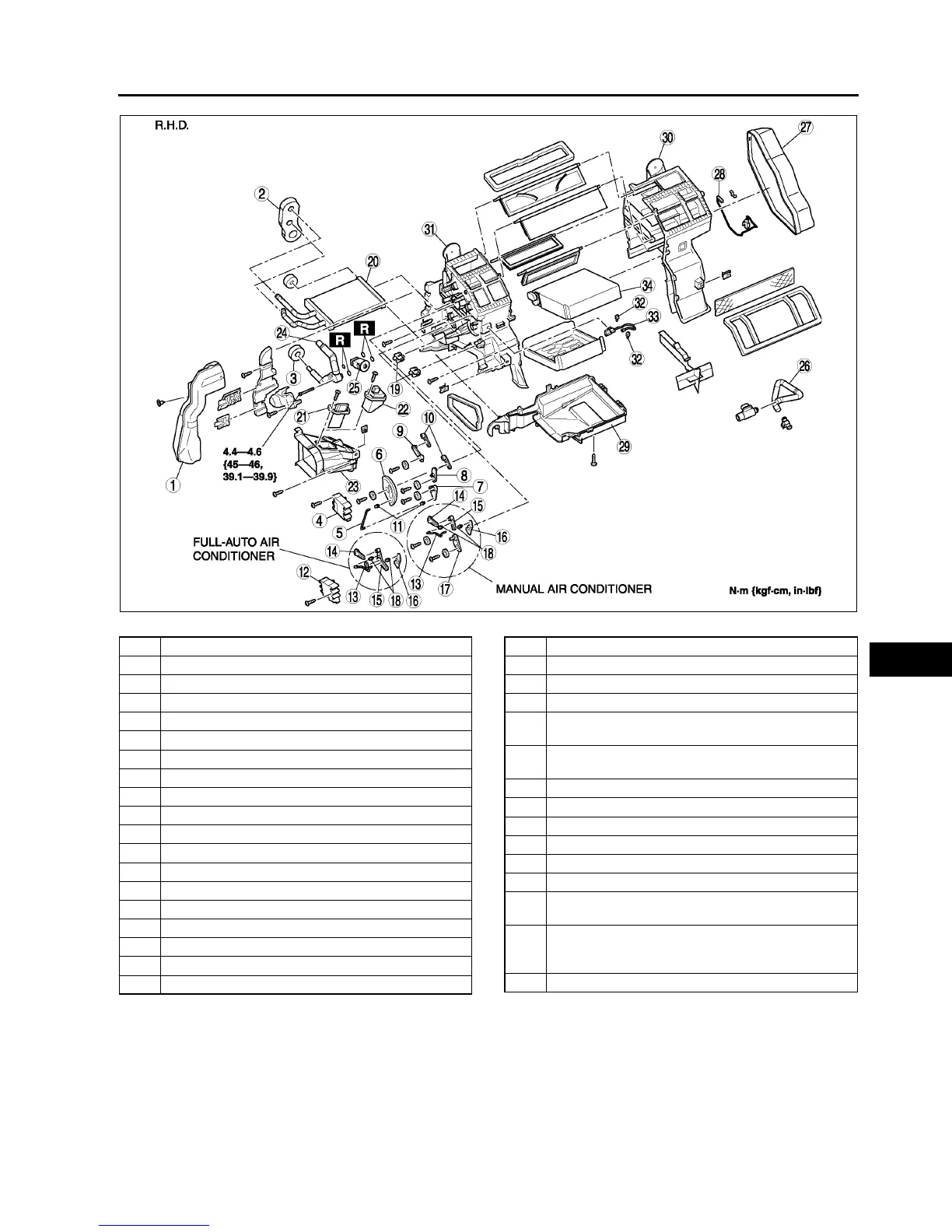

Mazda 6 2002 - Page 1109

BASIC SYSTEM
U19
U
.
A6E8516W006
1 Duct (1)
2 Polyurethane protector (1)
3 Polyurethane protector (2) (R.H.D.)
4 Airflow mode actuator (full-auto air conditioner)
5 Airflow mode rod (manual air conditioner)
6 Airflow mode main link
7 Airflow mode sub link (1) (manual air conditioner)
8 Airflow mode sub link (2)
9 Airflow mode sub link (3)
10 Airflow mode crank
11 Airflow mode rod holder (manual air conditioner)
12 Air mix actuator (full-auto air conditioner)
13 Air mix rod
14 Air mix crank (1)
15 Air mix link (1)
16 Air mix crank (2)
17 Air mix link (2) (manual air conditioner)
18 Air mix rod holder
19 Wire clamp (manual air conditioner)
20 Heater core
21 Resistor (manual air conditioner)
22 Power MOS FET (full-auto air conditioner)
23 Duct (2)
24 Outlet pipe
(SeeU21 Outlet Pipe Assembly Note)
25 Expansion valve
(See U20 Expansion Valve Assembly Note)
26 Air hose
27 Duct (3)
28 Water temperature sensor (full-auto air conditioner)
29 A/C case (3)
30 A/C case (1)
31 A/C case (2)
32 Sensor clamp
(SeeU20 Sensor Clamp Assembly Note)
33 Evaporator temperature sensor
(See U20 Evaporator Temperature Sensor
Assembly Note)
34 Evaporator
