U20
BASIC SYSTEM

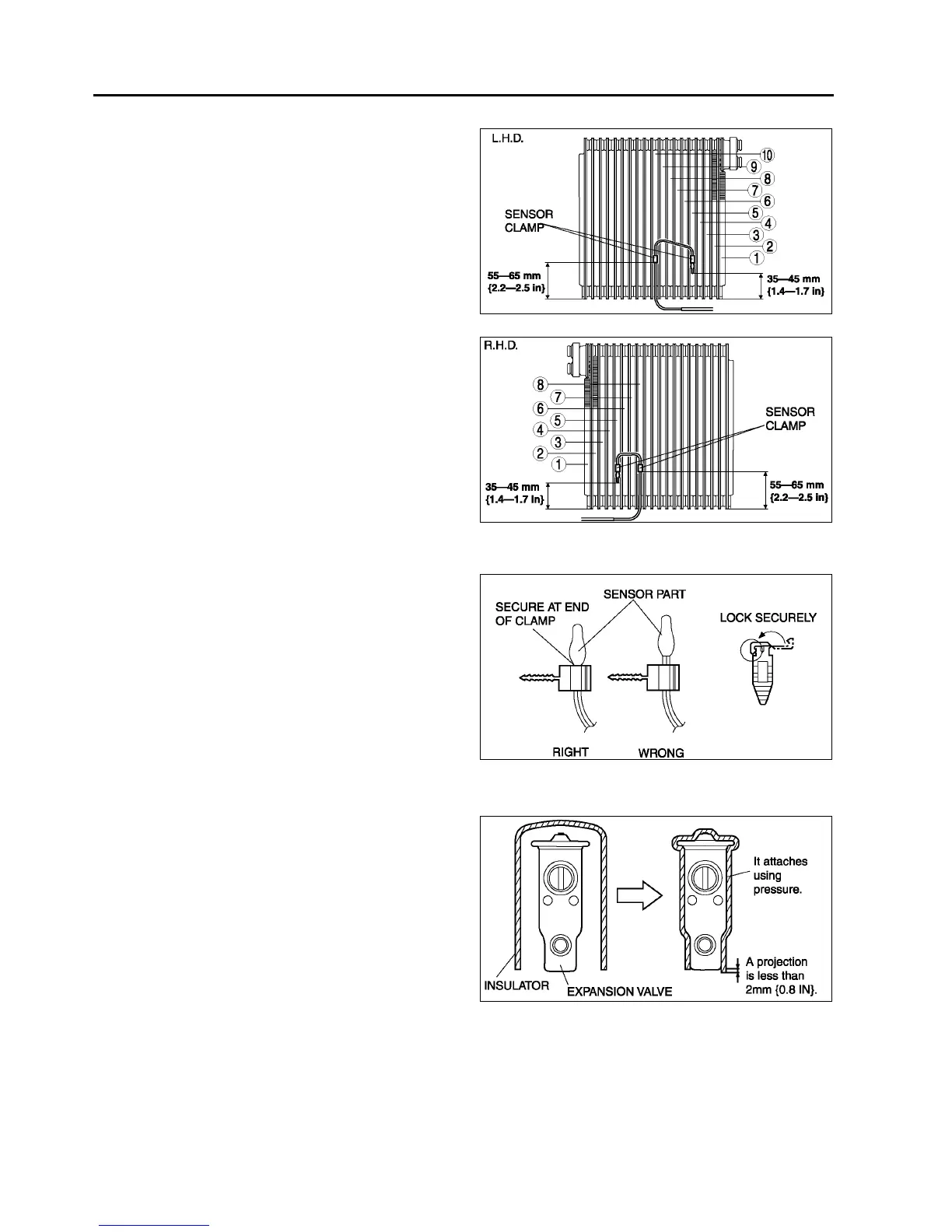

Evaporator Temperature Sensor Assembly Note
1. Assemble the evaporator temperature sensor as
shown in the figure.
Sensor Clamp Assembly Note
1. Attach the sensor clamp as shown in the figure.
Expansion Valve Assembly Note
1. Attach the insulator as shown in the figure.
A6E8516W020
A6E8516W021
A6E8516W007
A6E8516W027
