Outlet Pipe Assembly Note

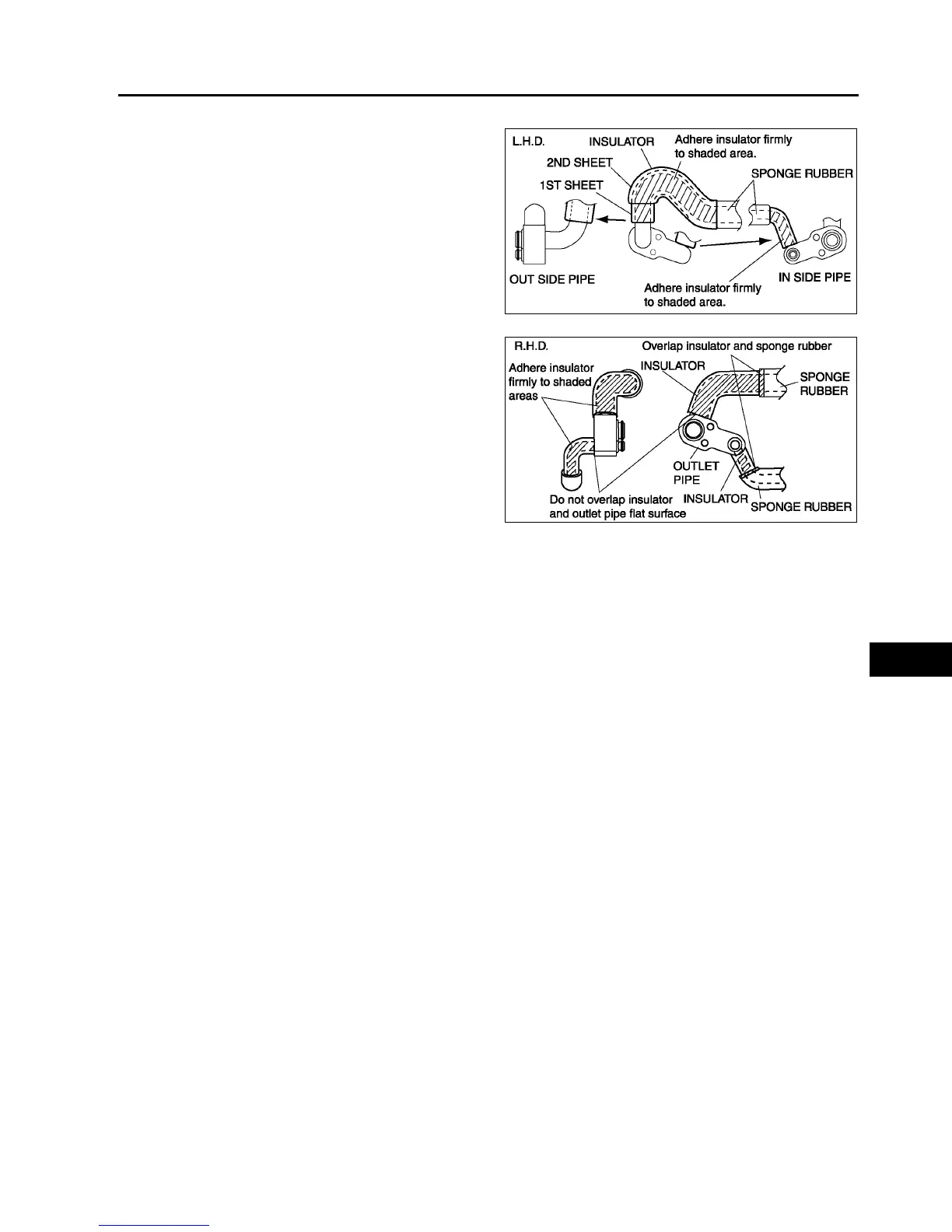

1. Wrap the insulator around the outlet pipe as
shown in the figure.
End Of Sie
EXPANSION VALVE REMOVAL/INSTALLATION
A6E851661130W03
1. Disconnect the negative battery cable.
2. Discharge the refrigerant from the system. (See U9 RECOVERY.) (See U9 CHARGING.)
Caution
•
••
• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and
abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration
cycle parts to keep moisture or foreign material out of the cycle.
3. Disconnect the cooler hose (Lo) (L.H.D) or cooler pipe No.4 (R.H.D.) and cooler pipe No.3. (See U25
REFRIGERANT LINES REMOVAL/INSTALLATION.)
4. Remove the dashboard. (See S82 DASHBOARD REMOVAL/INSTALLATION.)
5. Remove the duct (1).
6. Remove the air mix actuator. (Full-auto air conditioner)
7. Remove the screws and cover.
8. Remove the one plate (L.H.D.) or two plates (R.H.D.).
9. Remove the bolts and shift the outlet pipe. Do not allow compressor oil to spill.
