U22
BASIC SYSTEM

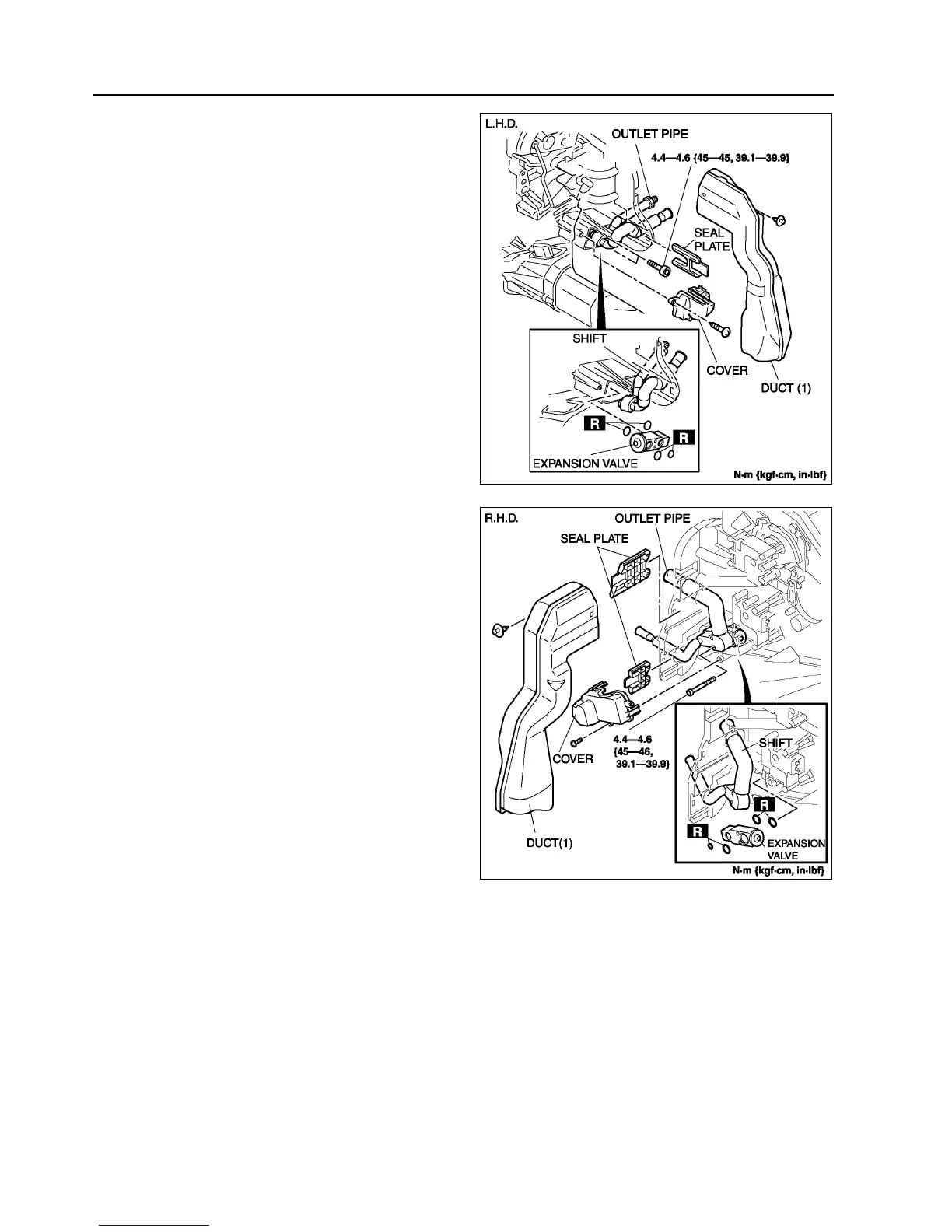

10. Remove the expansion valve. Do not allow
compressor oil to spill.
11. Install in the reverse order of removal.
12. Perform the refrigerant system performance test.
(See U13 REFRIGERANT SYSTEM
PERFORMANCE TEST.)
End Of Sie
EVAPORATOR INSPECTION
A6E851661810W01
1. Remove the A/C unit. (See U15 A/C UNIT REMOVAL/INSTALLATION.)
2. Remove the evaporator from the A/C unit.
3. Inspect for cracks, damage, and oil leakage.
• If any problems are found, replace the evaporator.
4. Inspect for bent fins.
• If any are bent, use a flathead screwdriver to straighten them.
End Of Sie
A6E8516W010
A6E8516W022
