Mazda 6 2002 - Page 1117

BASIC SYSTEM
U27
U
A6E8516W030

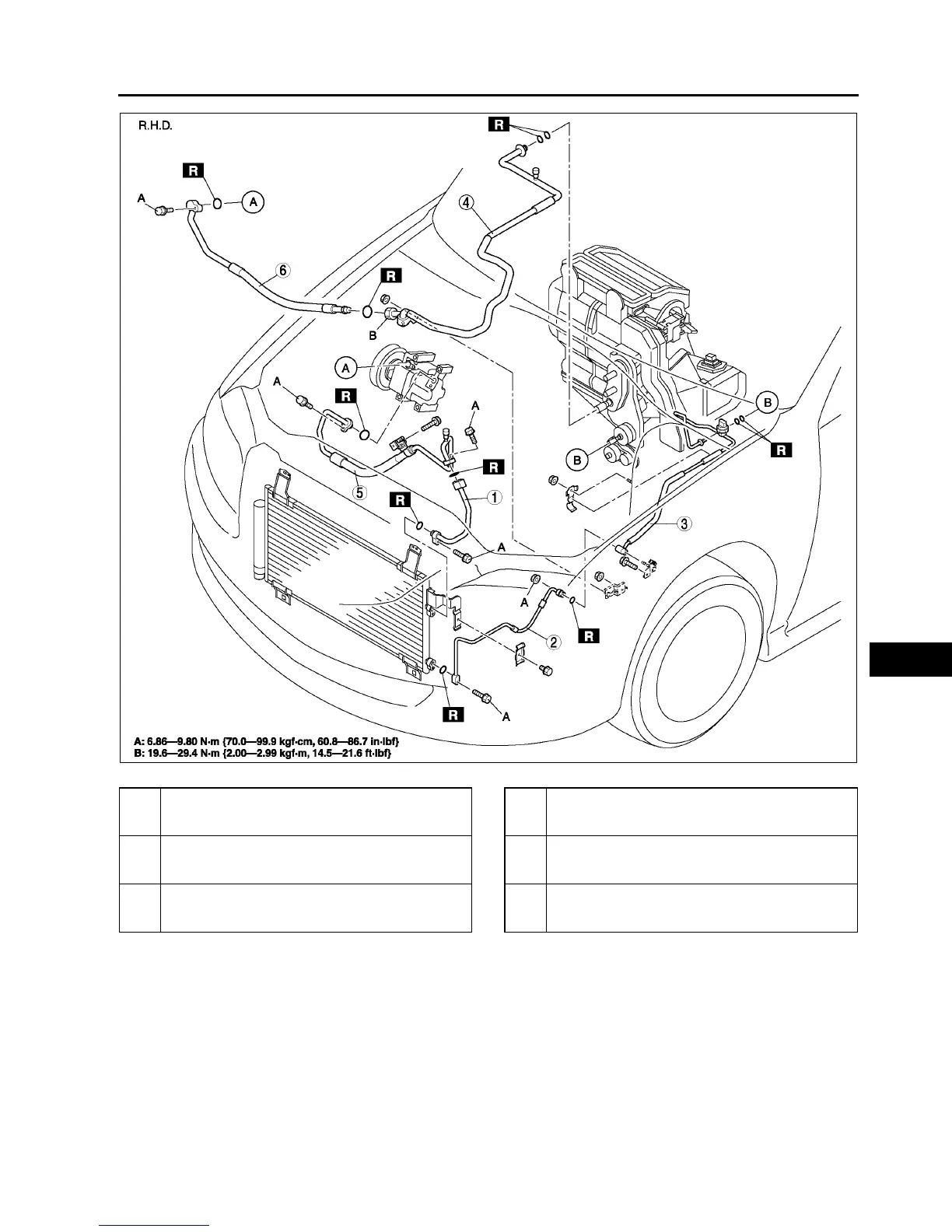

1 Cooler pipe No.1
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
2 Cooler pipe No.2
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
3 Cooler pipe No.3
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
4 Cooler pipe No.4
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
5 Cooler hose (HI)
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
6 Cooler hose (LO)
(See U28 Refrigerant Lines Removal Note)
(See U29 Refrigerant Lines Installation Note)
