K16
AUTOMATIC TRANSAXLE

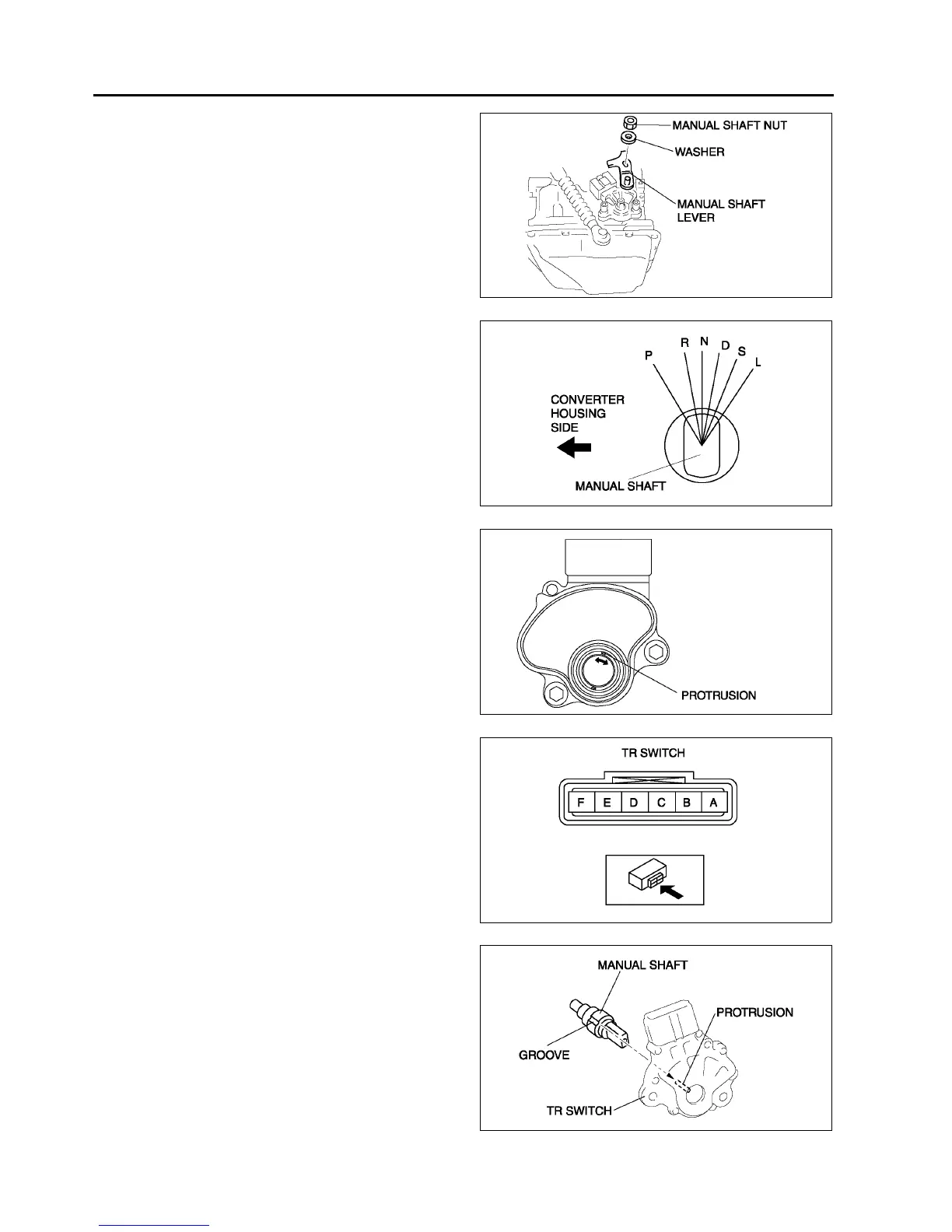

7. Remove the manual shaft lever.
8. Remove the TR switch.
9. Rotate the manual shaft to the converter housing
side fully, then return 2 notches to set the N
position.
10. Turn the protrusion at resistance between the
terminals B and C become 750 ohms.
11. Install the TR switch while aligning the protrusion
and groove as shown.
12. Hand-tighten the TR switch mounting bolts.
A6E5614W012
A6E5614W013
A6E5614W014
A6E5614W010
A6E5614W016
