ENGINE SPEED SENSING POWER STEERING
N13
N

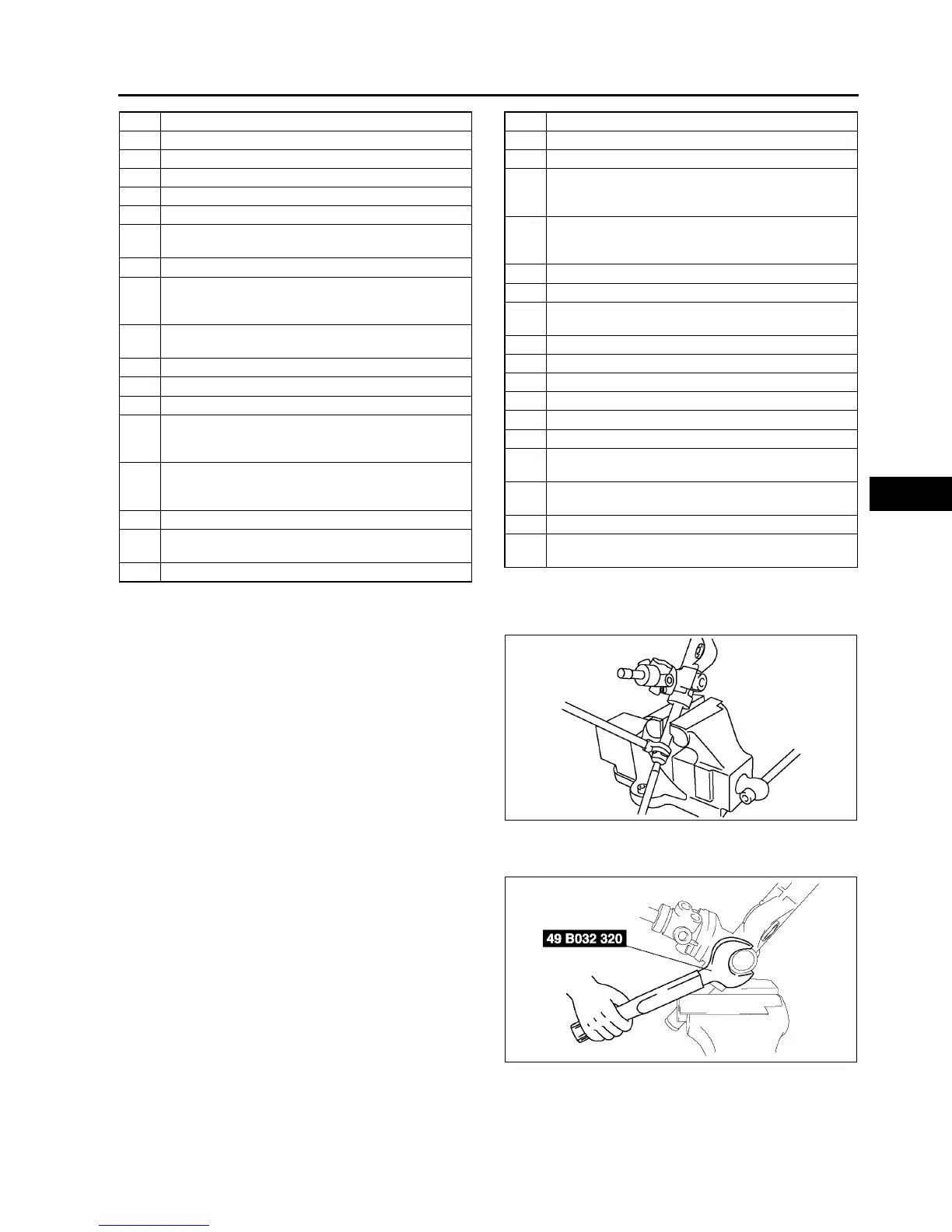

Tie Rod Disassembly Note
1. Unclamp the washer.
2. Remove the tie rod.
Locknut (Adjusting Cover) Disassembly Note
1. Remove the locknut using the SST.
1 Oil pipe
2 Tie-rod end
3 Locknut
4 Boot clamp
5 Boot band
6Boot
7Tie rod
(See N13 Tie Rod Disassembly Note)
8Washer
9 Locknut (adjusting cover)
(See N13 Locknut (Adjusting Cover) Disassembly
Note)
10 Adjusting cover
(See N14 Adjusting Cover Disassembly Note)
11 Yoke spring
12 Support yoke
13 Bolt
14 Pinion shaft and housing component
(See N14 Pinion Shaft and Housing Component
Disassembly Note)
15 Pinion shaft component
(See N14 Pinion Shaft Component Disassembly
Note)
16 O-ring
17 Snap ring
(See N14 Snap Ring Disassembly Note)
18 Control valve component
19 Seal ring
20 Pinion shaft
21 Valve housing component
22 Upper bearing
(See N15 Upper Bearing, Oil Seal Disassembly
Note)
23 Oil seal
(See N15 Upper Bearing, Oil Seal Disassembly
Note)
24 Return pipe
25 Valve Housing
26 Holder
(See N15 Holder Disassembly Note)
27 O-ring
28 U-gasket
29 Backup ring
30 Steering rack
31 Seal ring
32 O-ring
33 Oil seal
(See N15 Oil Seal, Inner Guide Disassembly Note)
34 Inner guide
(See N15 Oil Seal, Inner Guide Disassembly Note)
35 Gear housing
36 Mounting rubber
(See N15 Mounting Rubber Disassembly Note)
A6E0612W031
A6E0612W056
