N14
ENGINE SPEED SENSING POWER STEERING

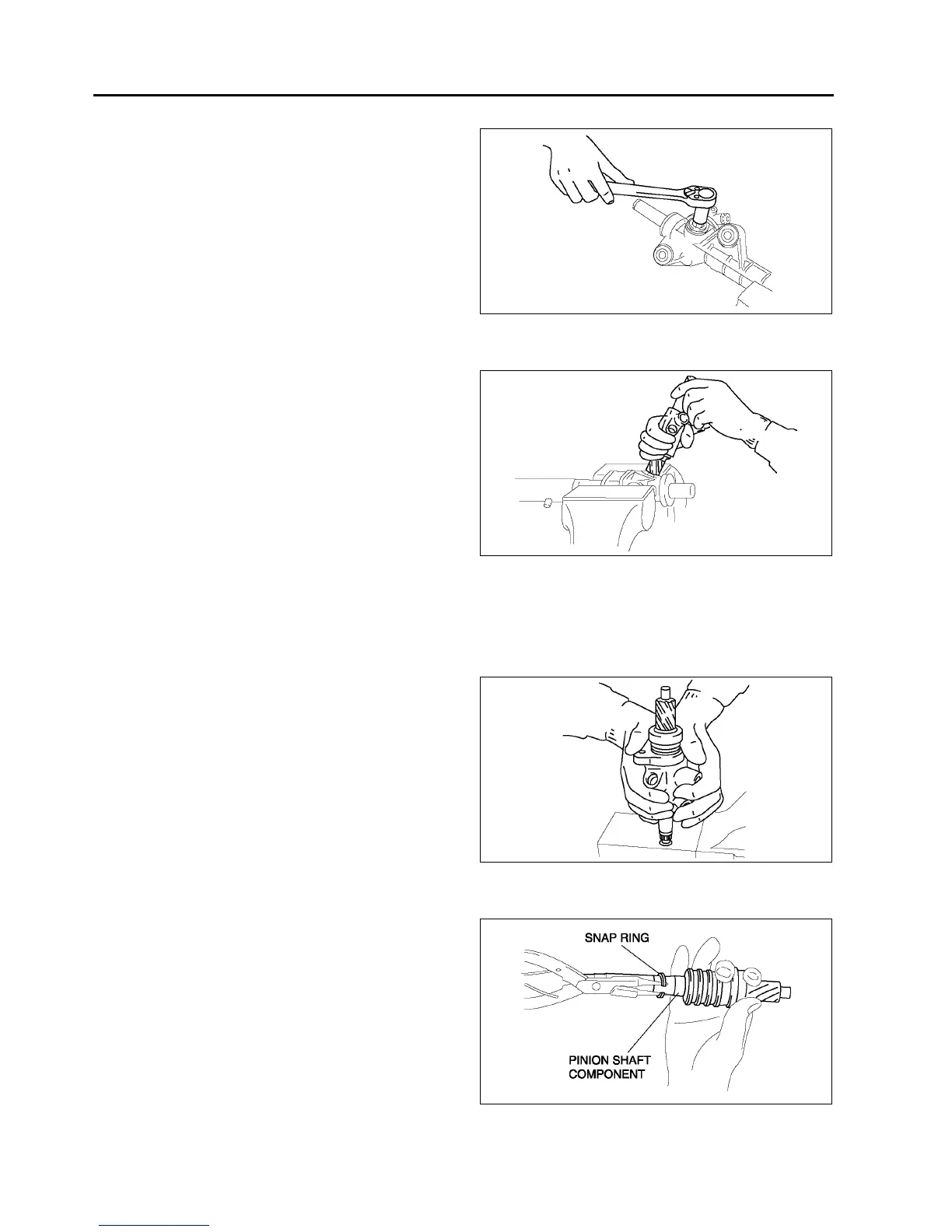

Adjusting Cover Disassembly Note
1. Remove the adjusting cover.
Pinion Shaft and Housing Component Disassembly Note
1. Hold the pinion shaft as shown, and pull out the
pinion shaft and housing component.
Pinion Shaft Component Disassembly Note
Note
• If the pinion shaft does not come out easily, remove it using a press.
1. Push out the pinion shaft componet from the
valve housing as shown.
Snap Ring Disassembly Note
1. Carefully remove the snap ring without damaging
the pinion shaft component.
A6E0612W033
A6E0612W038
A6E0612W034
A6E0612W074
