3. Verify that clearance distance AB is 14.0 mm
16.0 mm {0.56 in-0.62 in}.
End Of Sie
REAR LATERAL LINK REMOVAL/INSTALLATION
A6E741628600W01
Caution
•
••
• Performing the following procedures without first removing the ABS wheel-speed sensor may
possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while servicing the vehicle.

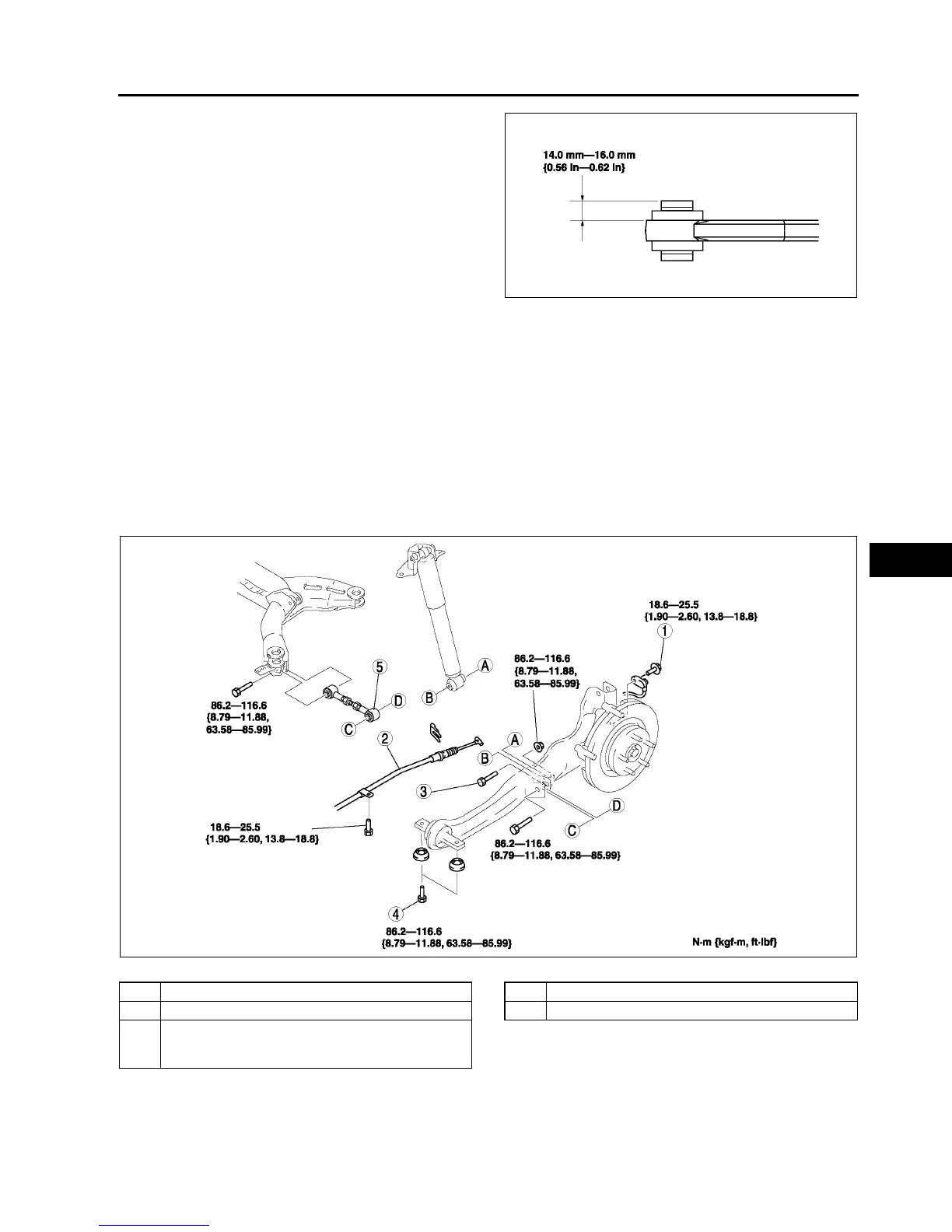

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Inspect the rear wheel alignment.
(See R6 REAR WHEEL ALIGNMENT.)
.
A6E7416W013
A6E7416W017
1 ABS wheel-speed sensor
2 Parking brake cable
3 Bolt (rear shock absorber lower side)
(SeeR34 Bolt (Rear Shock Absorber Lower Side)
Removal Note)
4 Bolt (trailing link front side)
5 Rear lateral link
