T28
EXTERIOR LIGHTING SYSTEM

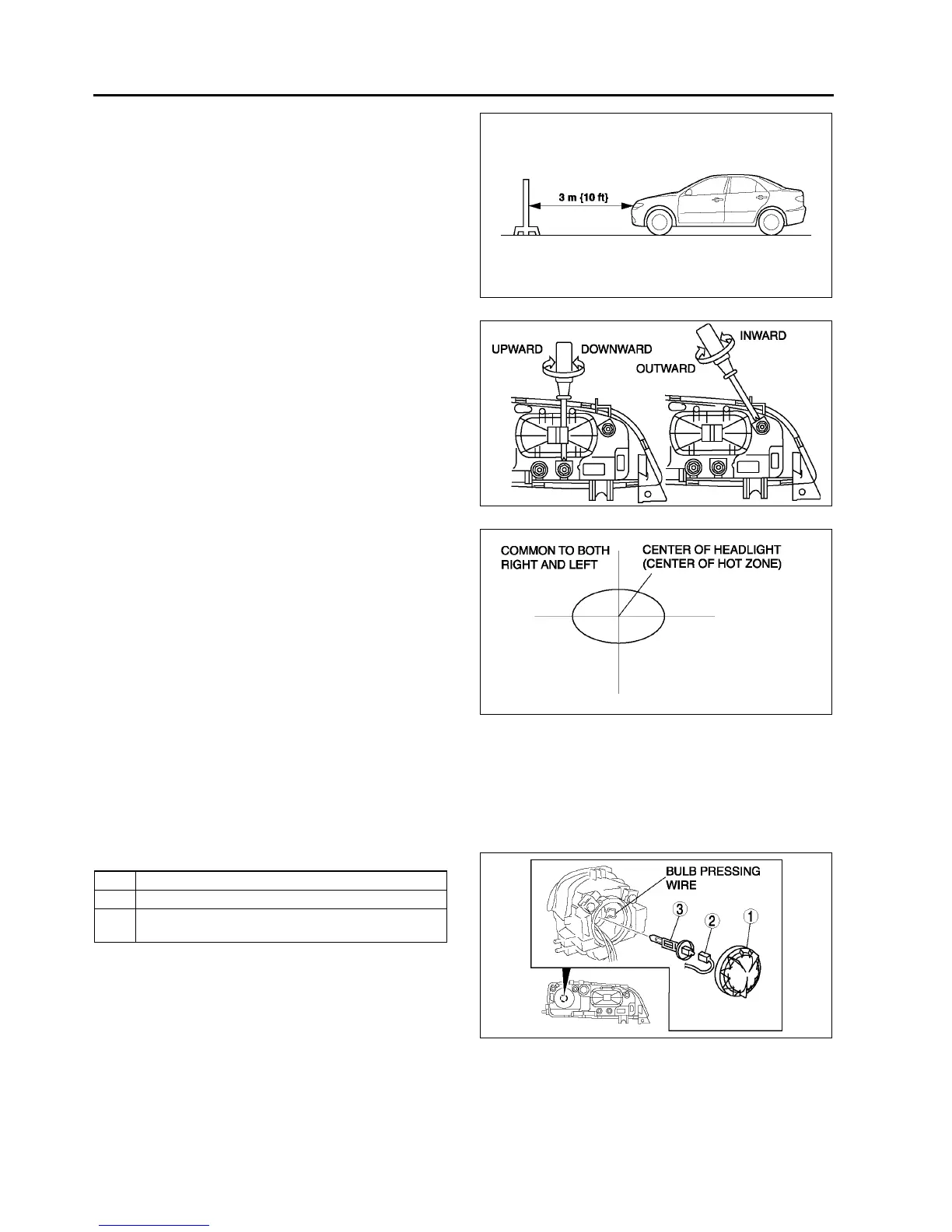

5. Set the headlights 3 m {10 ft} from the wall.
6. While adjusting one headlight, mask the other.
7. Start the engine to charge the battery.
8. Turn on the high-beam headlights.
9. Set the headlight leveling switch to 0 position.
10. Adjust the headlights by turning the adjusting
screws as shown in the figure. Loosen the screws
first, then tighten them.
Note
• If the adjusting screws are tightened first,
then loosened, they will continue to loosen
when the vehicle is in motion and may cause
the headlights to become misaligned.
End Of Sie
HEADLIGHT BULB REMOVAL/INSTALLATION
A6E811251030W02
Low-beam
Halogen type
1. Disconnect the negative battery cable.
2. Disconnect the front combination light. (See T26 FRONT COMBINATION LIGHT REMOVAL/
INSTALLATION)
3. Remove in the order indicated in the table.
Caution
•
••
• A halogen bulb generates extremely high
heat when it is used. If the surface of the
bulb is soiled, excessive heat will build
up and the light's life will be shortened.
When replacing the bulb, hold the metal
flange, not the glass.
4. Install in the reverse order of removal.
Headlight bulb removal note
1. Release the bulb pressing wire to remove the headlight bulb.
A6E8112W157
A6E8112W124
A6E8112W136
1Cover
2 Connector
3 Headlight bulb (See T28 Headlight bulb removal
note)
A6E8112W105
