T64
WIPER AND WASHER

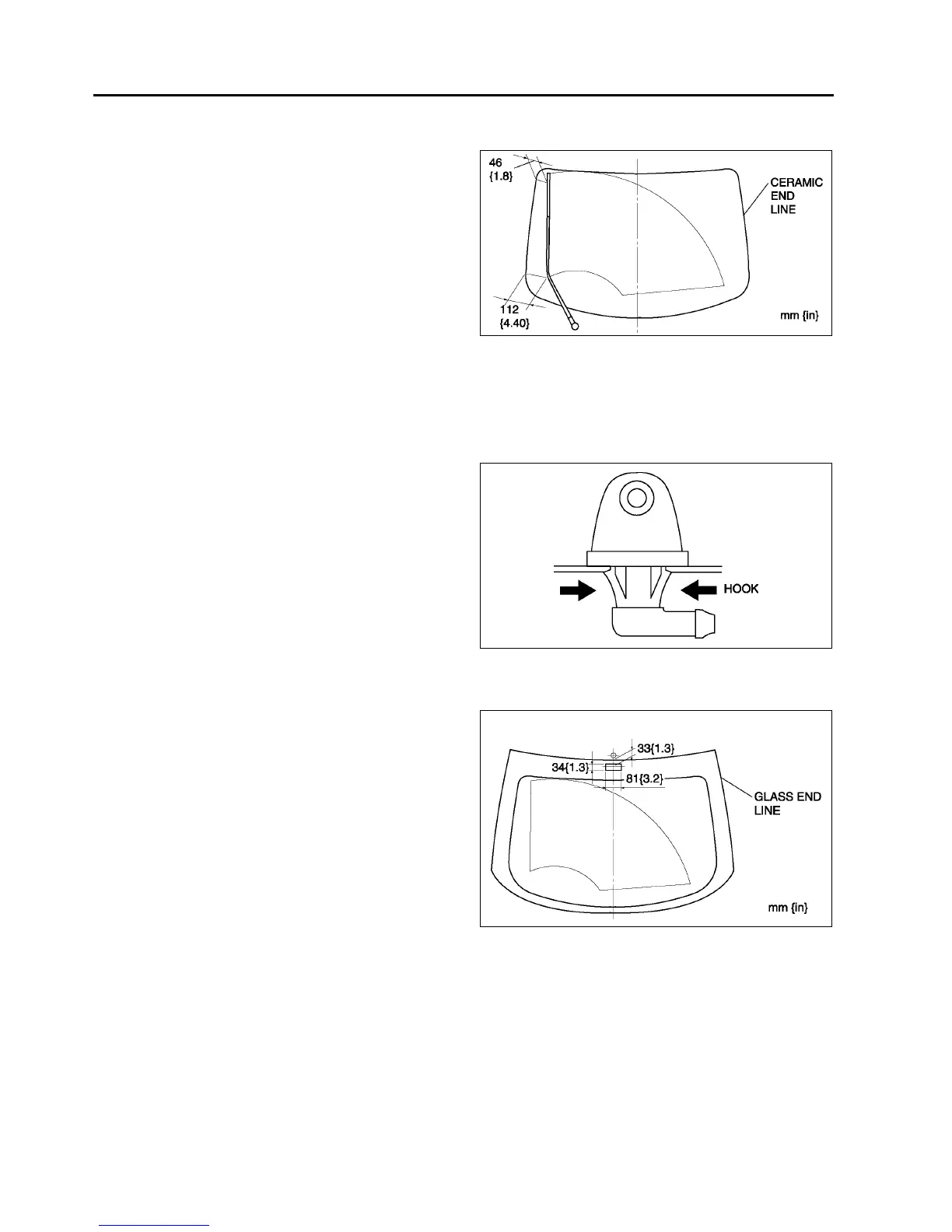

REAR WIPER ARM AND BLADE ADJUSTMENT
A6E811667420W02
1. Operate the rear wiper motor to set the wiper in the park position.
2. Set the rear wiper arm onto the ceramics end line.
End Of Sie
REAR WASHER NOZZLE REMOVAL/INSTALLATION
A6E811667511W01
1. Disconnect the negative battery cable.
2. Remove the liftgate upper trim. (See S94 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)
3. Remove the rear washer hose from the rear washer nozzle.
4. Compress the tabs of the rear washer nozzle.
5. Pull the rear washer nozzle out to remove it.
6. Install in the reverse order of removal.
7. Adjust the rear washer nozzle. (See T64 REAR
WASHER NOZZLE ADJUSTMENT.)
End Of Sie
REAR WASHER NOZZLE ADJUSTMENT
A6E811667511W02
1. Insert a needle or an equivalent tool into the spray
hole of the rear washer nozzle and adjust the
nozzle direction as shown.
End Of Sie
REAR WASHER NOZZLE CLEANING
A6E811667511W03
1. Clean the rear washer nozzle. (See T60 WINDSHIELD WASHER NOZZLE CLEANING.)
End Of Sie
A6E8116W109
A6E8116W105
A6E8116W108
