AUTOMATIC TRANSAXLE
K2–61
K2
Operation

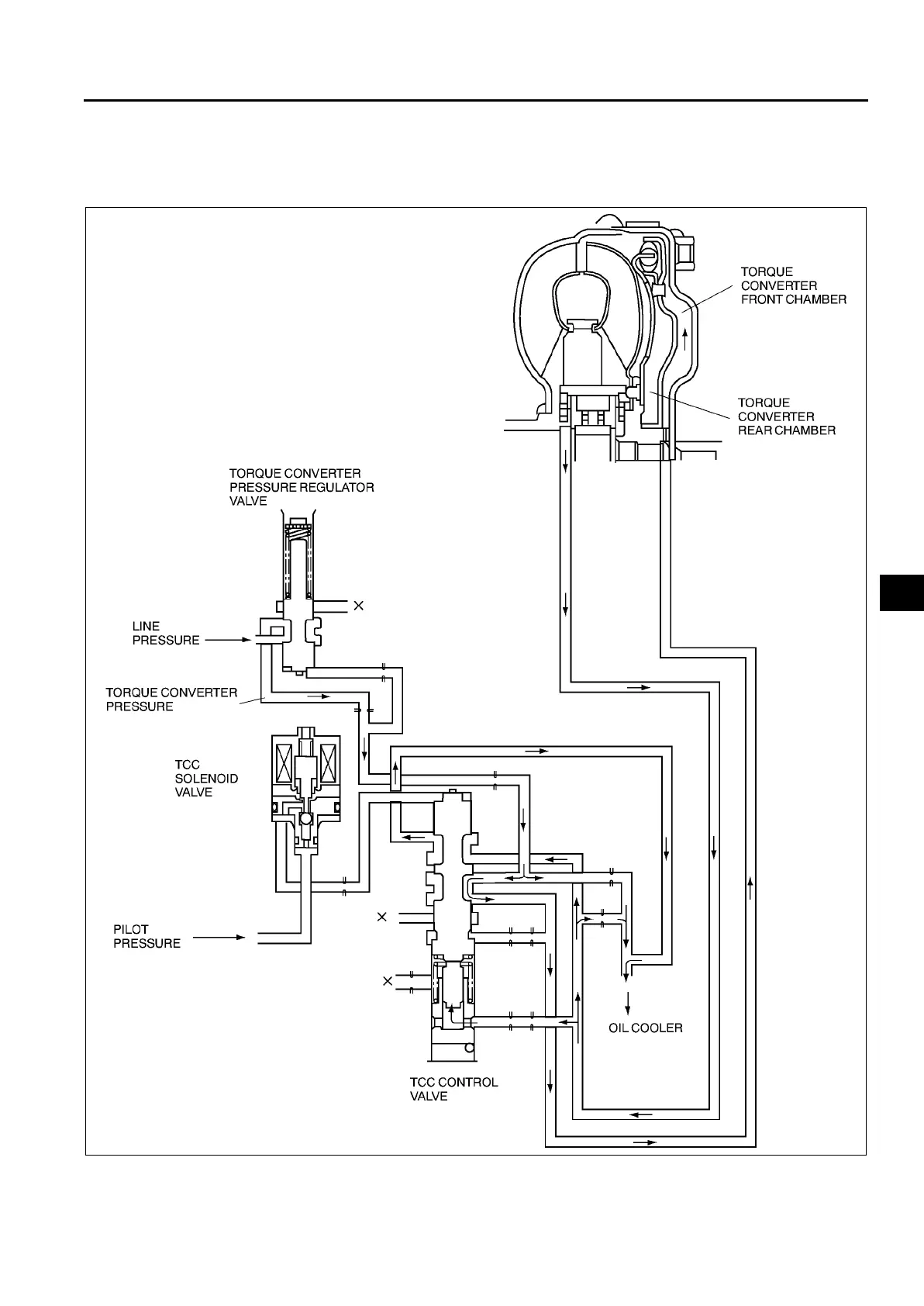

Torque converter clutch (TCC) release operation
• The TCM sends an OFF signal to TCC solenoid valve to release the TCC. In this condition, the TCC control
valve is pushed to the up side by spring force and line pressure, and torque converter pressure acts on the
torque converter front chamber, releasing the TCC from the converter cover.
AMU0517S041
To Next Page
