M–68
ELECTRONIC 4WD CONTROL SYSTEM

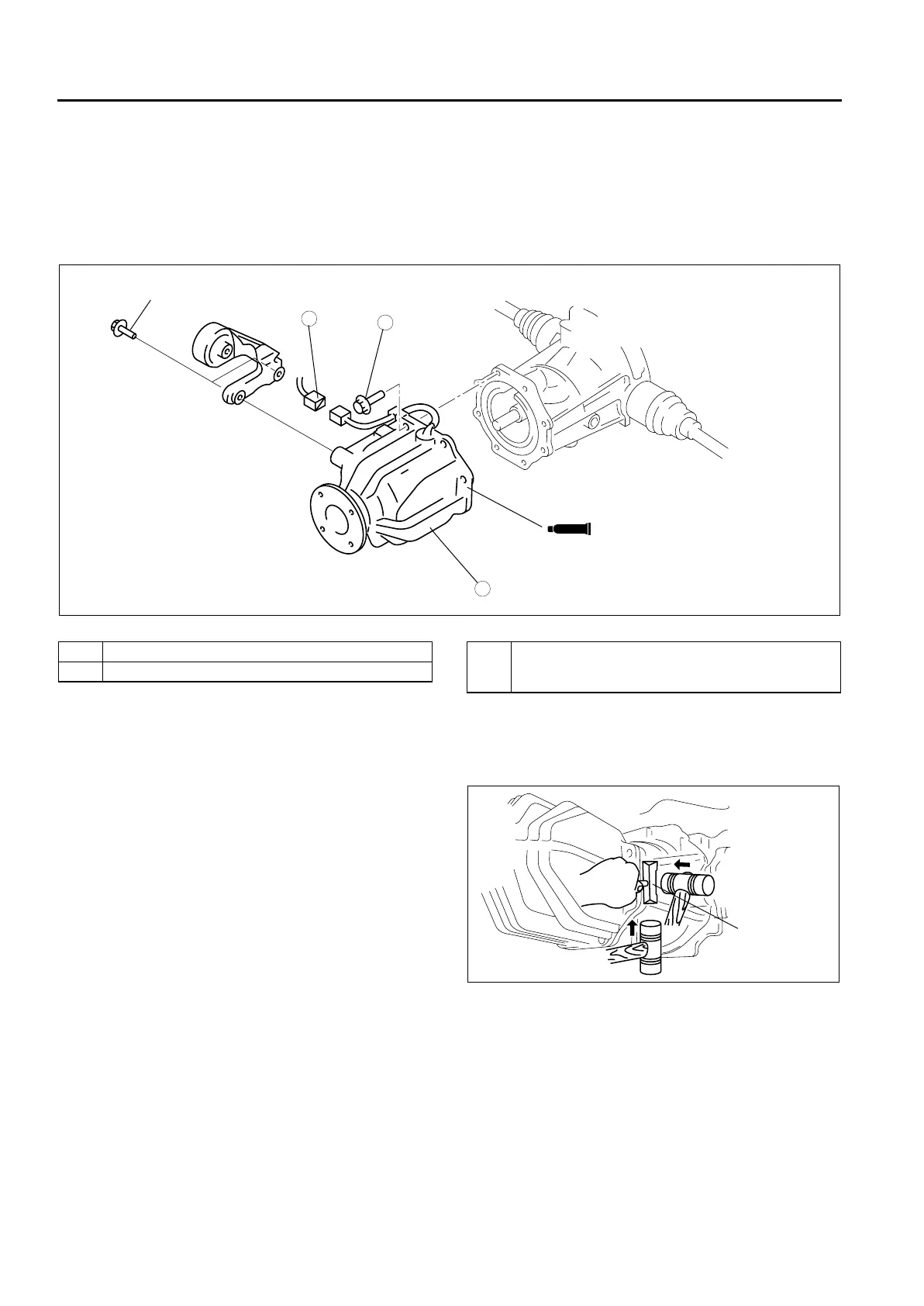

COUPLING COMPONENT REMOVAL/INSTALLATION
A6E632227100214
1. Drain the differential oil into a container.
2. Remove the after silencer, presilencer, and the catalytic converter. (See F1–30 EXHAUST SYSTEM
REMOVAL/INSTALLATION.)
3. Remove the propeller shaft. (See L–5 PROPELLER SHAFT REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Add differential oil.
.
Coupling Component Removal Note
1. Support the coupling unit with a transmission jack.
2. Cut away the coupling unit using an oil pan seal
cutter.
Coupling Component Installation Note
Note
• Clean away the old sealant before applying the new sealant.
• Install the coupling unit within 10 minutes after applying sealant.
• Allow the sealant to set at least 30 minutes after installation before filling the differential with the specified
oil.
3
1
2
SEALANT
74.5—104.9
{7.6—10.6, 55.0—77.3}
22.6—26.4
{2.4—2.6, 16.7—19.4}
N·m {kgf·m, ft·lbf}
A6E63222106
1 4WD solenoid connector
2Bolt
3 Coupling component
(See M–68 Coupling Component Removal Note)
(See M–68 Coupling Component Installation Note)
OIL PAN
SEAL CUTTER
A6E63222107
To Next Page
