U–12
BASIC SYSTEM
CONDENSER REMOVAL/INSTALLATION
A6E851661480201
1. Disconnect the negative battery cable.
2. Discharge the refrigerant from the system.
3. Remove the shroud panel.
Caution
• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and
abnormal noise will occur. Always immediately plug all open fittings after removing any
refrigeration cycle parts to keep moisture or foreign material out of the cycle.
4. Remove in the order indicated in the table. Do not
allow compressor oil to spill.
.
5. Install in the reverse order of removal.
6. Perform the refrigerant system performance test.
Condenser Installation Note
1. When installing a new condenser, add a supplemental amount of ATMOS GU10 compressor oil inlet the
refrigerant cycle.
Supplemental amount (approximate quantity)
35 ml {35 cc, 1.2 fl oz}
End Of Sie
1 Cooler pipe No.1
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
2 Cooler pipe No.2
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
(See U–13 REFRIGERANT LINES REMOVAL/
INSTALLATION)
3 Condenser
(See U–12 Condenser Installation Note)
N·m {kgf·cm, in·lbf}
R
3
1
2
6.86—9.80
{70.0—99.9, 60.8—86.7}
R

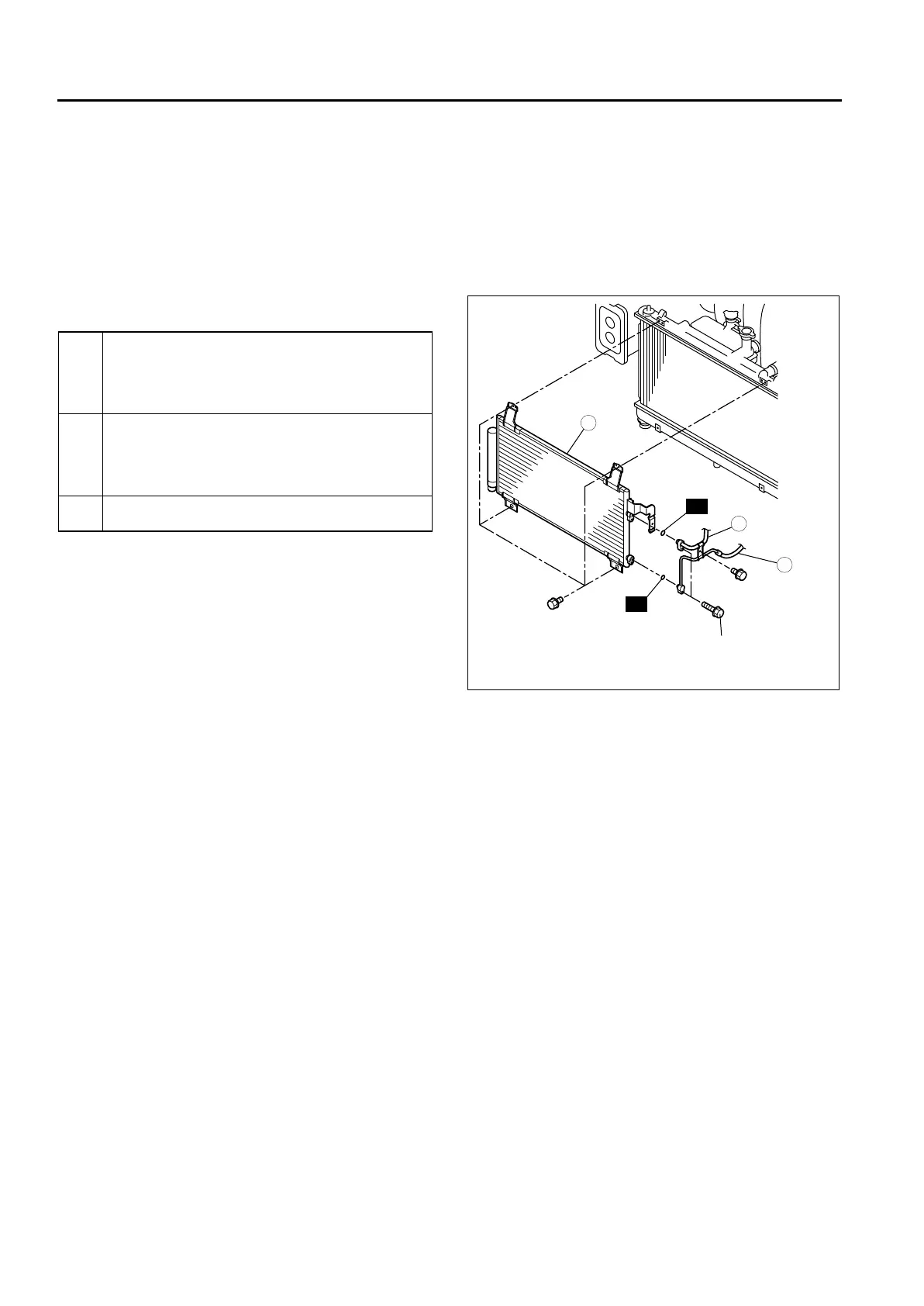

A6E8516W013
