DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-31

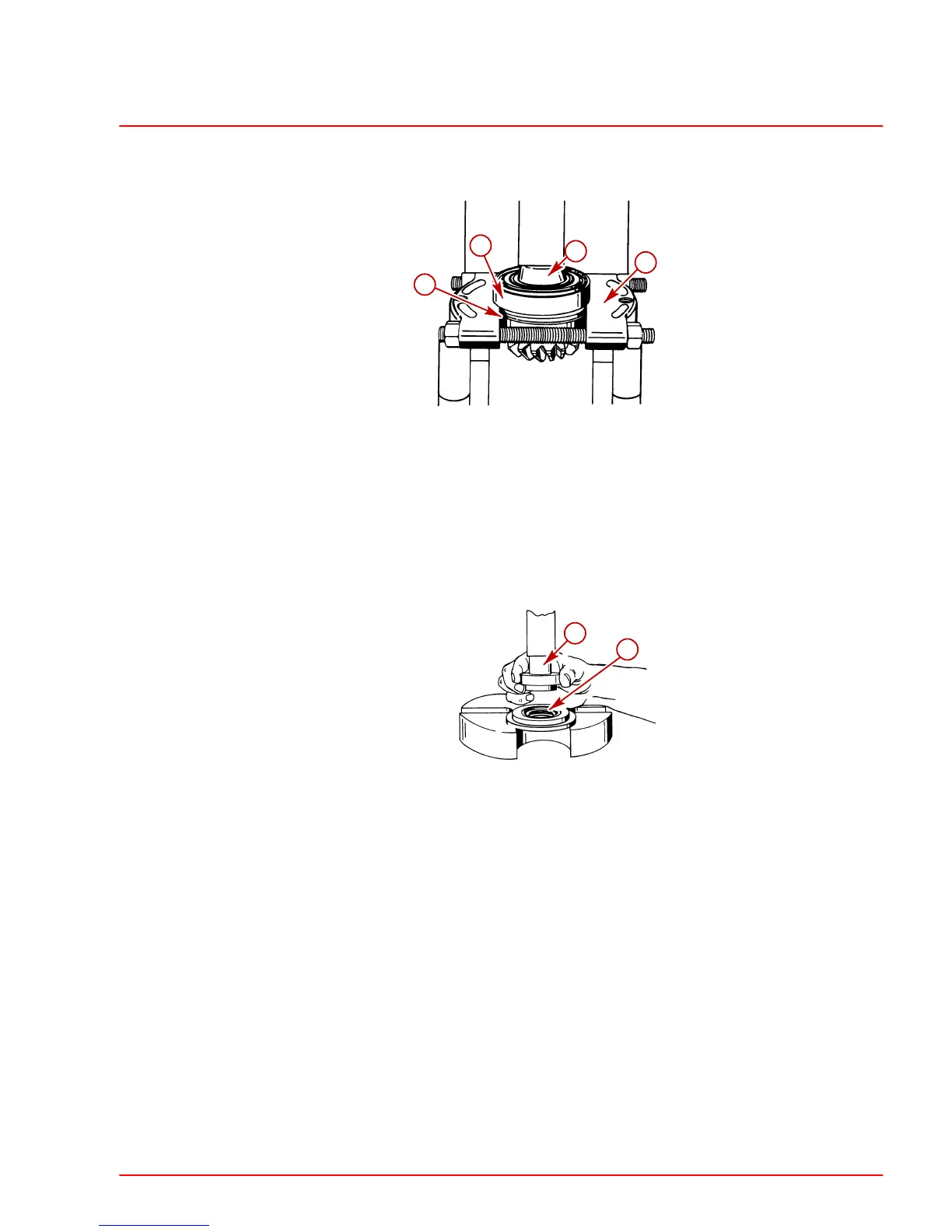

2. If you determine that U-joint bearings are in need of replacement and that gear is in good
condition, remove bearings from gear using puller plate and arbor press (bearings are
damaged in removal and should not be reused).
22393
a
b
c
d
a-Gear and Bearing Assembly
b-Puller Plate (91-37241)
c-Spacer
d-Suitable Mandrel
3. If seal is defective, remove U-joint seal using a punch and hammer or press out with suit-
able mandrel.
NOTE: The U-joint seal is located in the seal carrier on standard Bravo drives and in the
bearing retainer nut on Bravo X, XZ, XR, and Diesel Bravo.
22102
b
a
Standard Bravo Shown
a-Seal
b-Suitable Mandrel
