DRIVE SHAFT HOUSING SERVICE MANUAL NUMBER 28
Page 3A-32 90-863160 MAY 2000

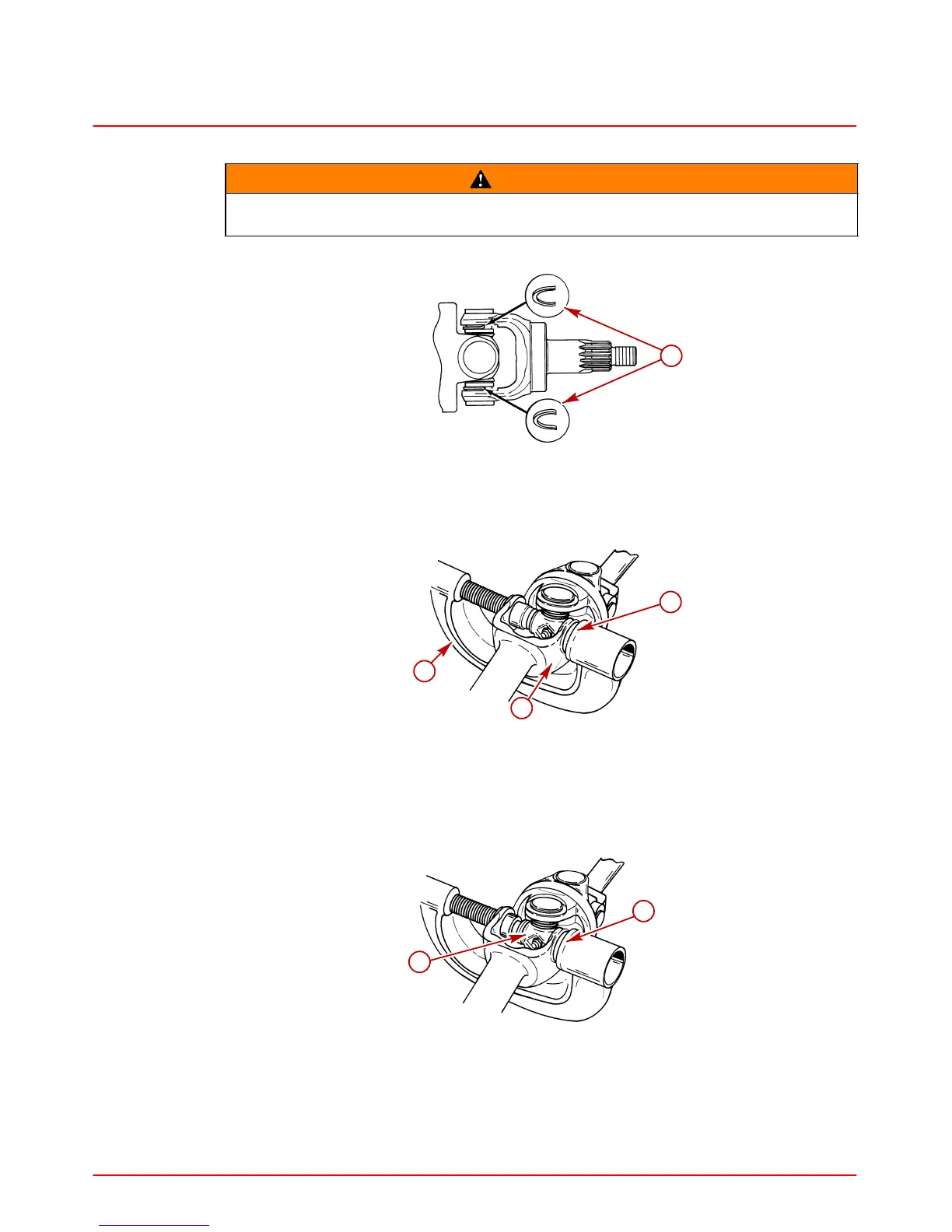

4. If replacing U-joint cross bearings,proceed as follows:
WARNING
U-joint snap rings might accidentally be knocked off of the U-joint during installa-
tion. Wear safety glasses to avoid eye injury.
a. Drive off universal joint bearing snap rings, using a punch and hammer.
22179
a
a-Snap Ring
b. Standard Bravo: Using adaptor and U-joint press, press one bearing in until oppo-
site bearing is pressed out into adaptor. Remove loose bearing.
22180
a
c
b
a-Press
b-Adaptor (91-38756)
c-Yoke
c. Turn U-joint assembly 180 degrees and press on bearing cross to remove second
bearing. Remove second bearing. Remove each pair of bearings in this manner.
22180
a
b
a-Bearing Cross
b-Adaptor
