DRIVE SHAFT HOUSING SERVICE MANUAL NUMBER 28
Page 3A-56 90-863160 MAY 2000
NOTE: If using original thrust bearing race, race should be installed so that the side of origi-
nal contact area is in the same position as removed. Prelube all races and bearings with
High-Performance Lube.

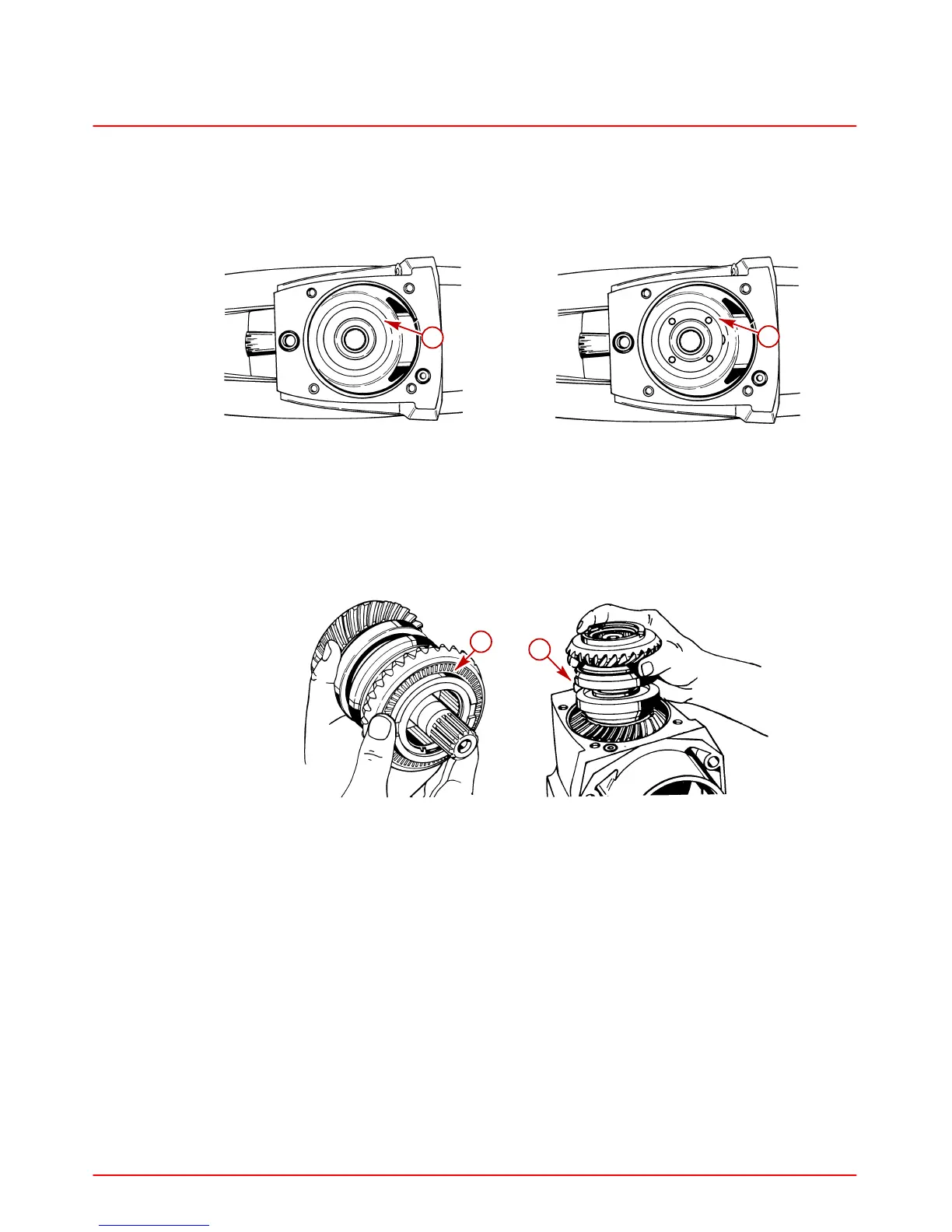

1. Position correct thrust bearing race in drive shaft housing (see “Important,” preceding).
22437
76850
a
a
Standard Bravo Bravo X, XZ, XR, & Diesel Bravo
a-Thrust Bearing Race
2. Apply a mixture of 60% Hi Performance Gear Lube and 40% Special Lubricant 101 to
bottom face of bottom gear. Stick thrust bearing to gear. Install clutch assembly.
22435
22099
c
b
b-Thrust Bearing
c-Gear Assembly
