DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-57
3. Apply a mixture of 60% Hi Performance Gear Lube and 40% Special Lubricant 101 to
the top face top gear and the thrust bearing. Place thrust bearing on gear. Position cor-
rect thrust bearing race on top of thrust bearing.

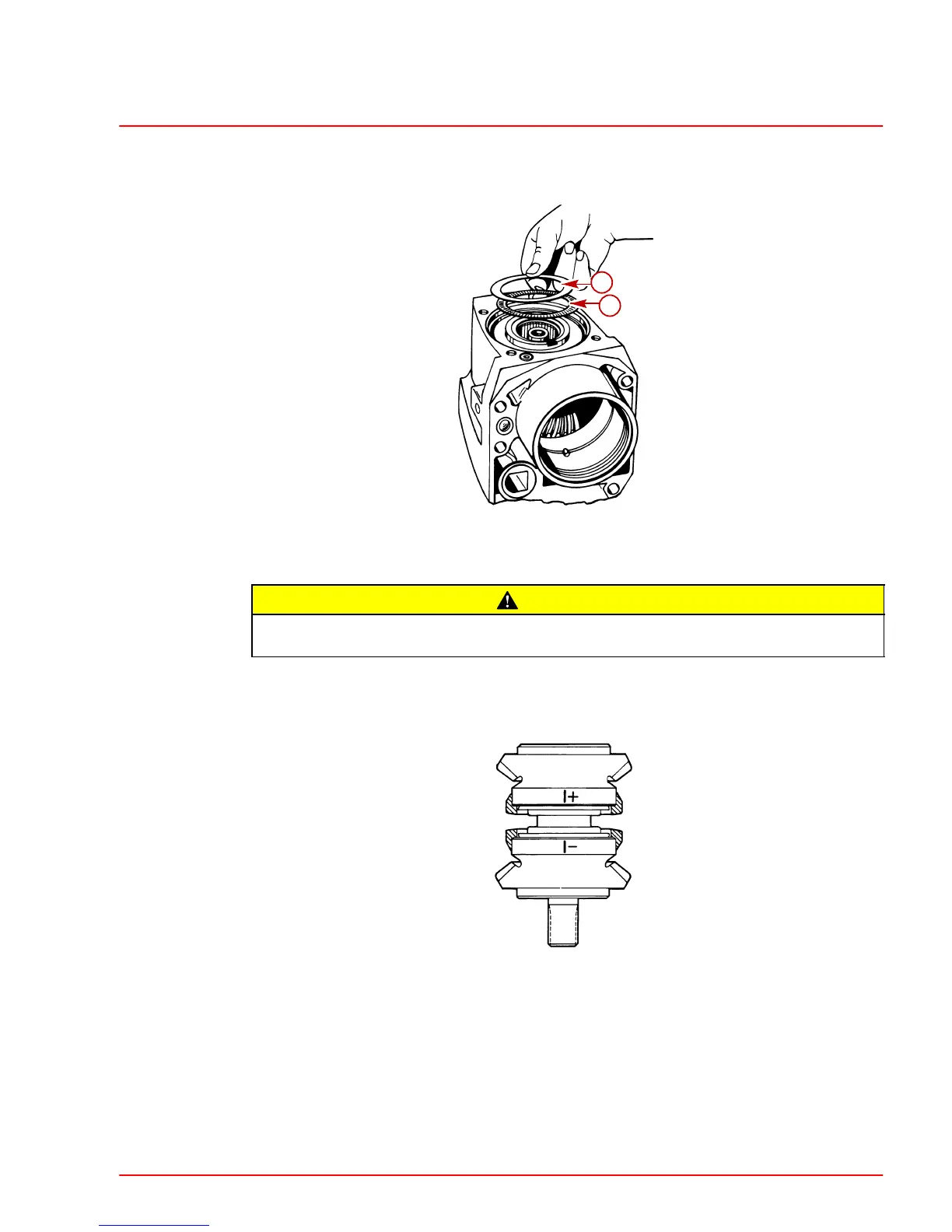

50304
a
b
a-Thrust Bearing
b-Thrust Race
CAUTION
Gear assembly must be timed as shown, following, or damage to gears and U-joint
pinion gear may occur.
• Timing marks on gears must be aligned in one of two ways. The positive (+) mark over
the negative (–) or the negative (–) mark over the positive (+) mark. NEVER align two
positive (+) marks or two negative (–) marks.
22107
