SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4A-13

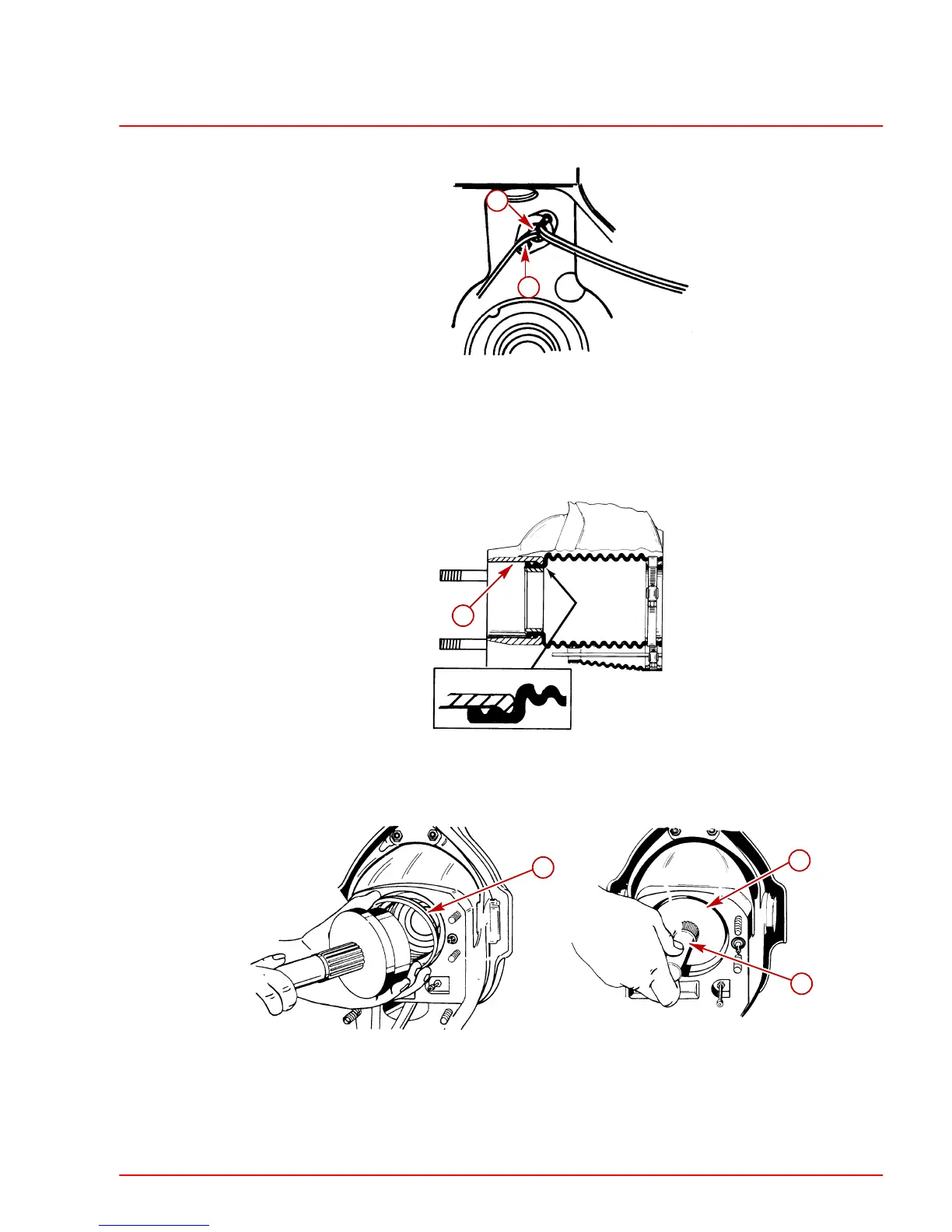

2. Reinstall retainer. Torque screw to 95 lb-in. (11 Nm).
70197
a
b
a-Clamp
b-Screw
3. Install U-joint bellows on bell housing as follows:
a. Position U-joint bellows on bell housing. Ensure that the bell housing flange rests
in the second groove from the end of the bellows.
22116
a
a-Bell Housing Flange
b. Lubricate sleeve outside diameter with soapy water or engine cleaner. Install sleeve
with sleeve installation tool and a suitable driving rod.
76670
76671
b
c
a
a-Sleeve
b-Sleeve Installation Tool (91-818162)
c-Suitable Driving Rod
