Mercury BRAVO Service Manual

OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-47

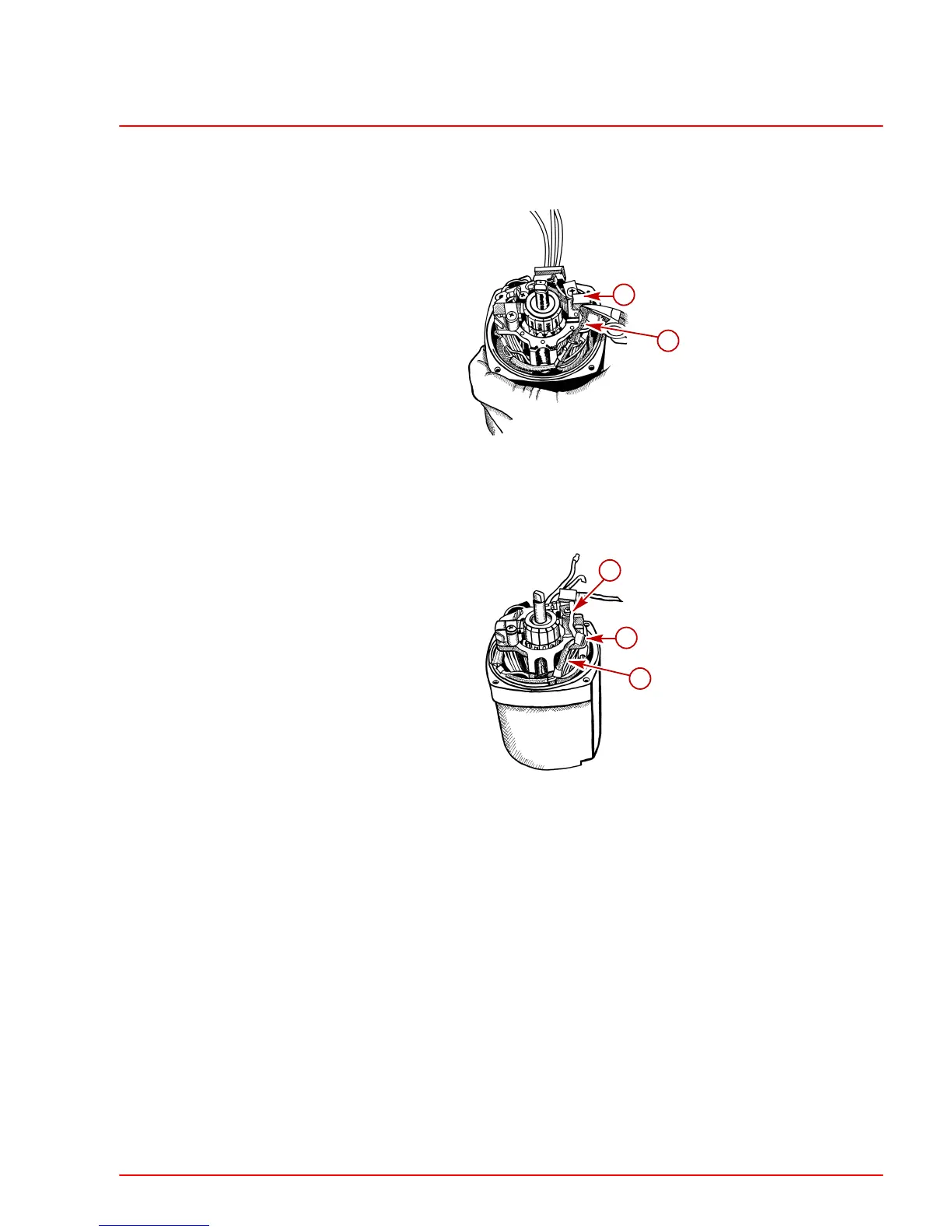

IMPORTANT: When replacing the brush that is connected to the field wires, cut the
brush wire as close to the brush as possible.
4. Cut the brush wire as close to the brush as possible and discard the brush.
22632
b
a
a-Brush Wire
b-Brush
5. Connect the new brush wire to the field wire cut in the previous step. Secure by crimping
both wires together as shown.
22635
a
c
b
a-Brush Wire
b-Field Wire (Old Brush Wire)
c-Crimp Connector
