OILDYNE TRIM PUMP
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5A-53

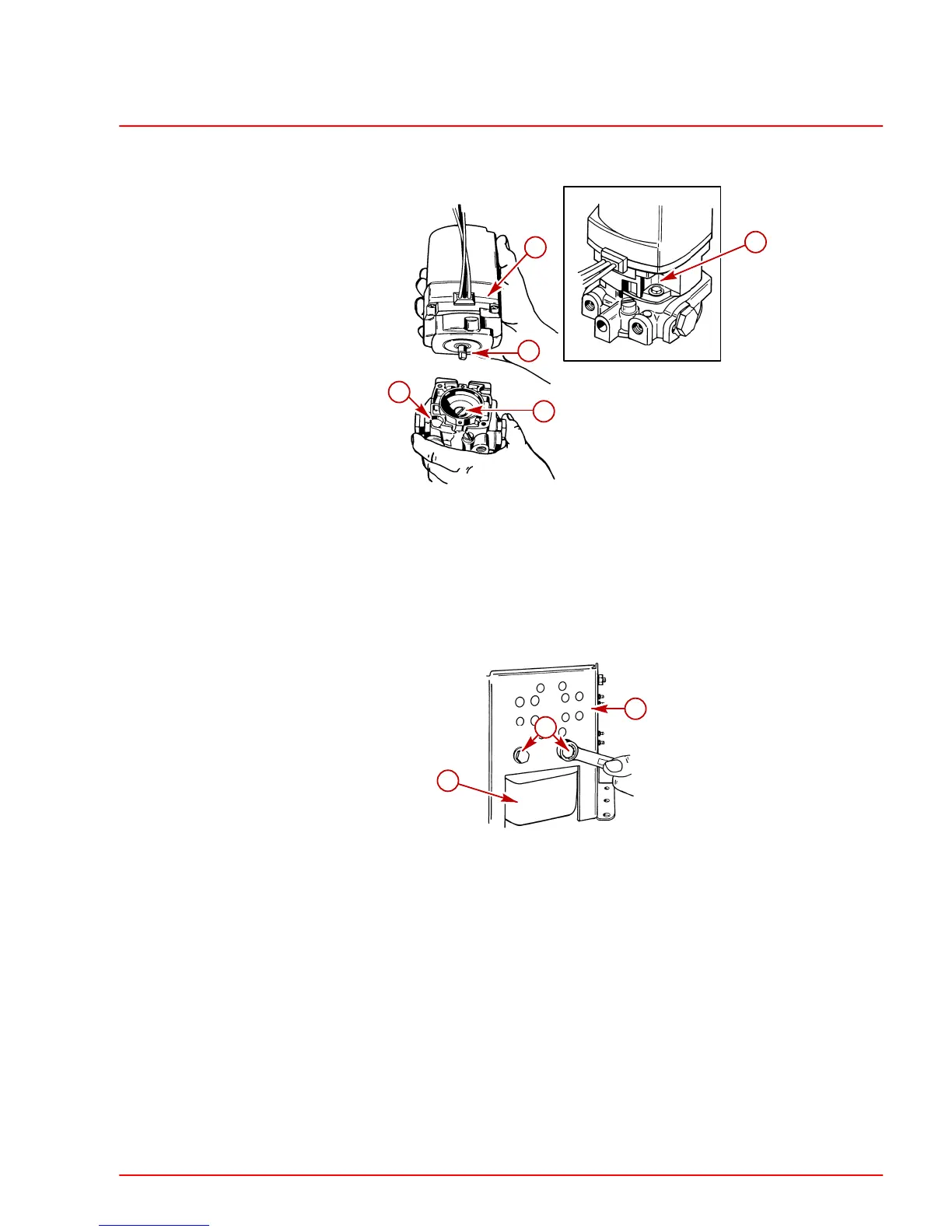

10. Align the motor shaft with the coupler and install the trim motor on the adapter. Torque
the screws to 25 lb-in. (2.8 Nm).
22548
22496
c
a
e
d
b
a-Trim Motor
b-Adapter
c-Screws (2 in Opposite Corners)
d-Coupler
e-Motor Shaft
11. Install the trim pump on the dual mount bracket. Tighten securely.
22548
b
c
a
a-Trim Pump
b-Floor Bracket
c-Screws and Lock Washers
