OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-54 90-863160 MAY 2000

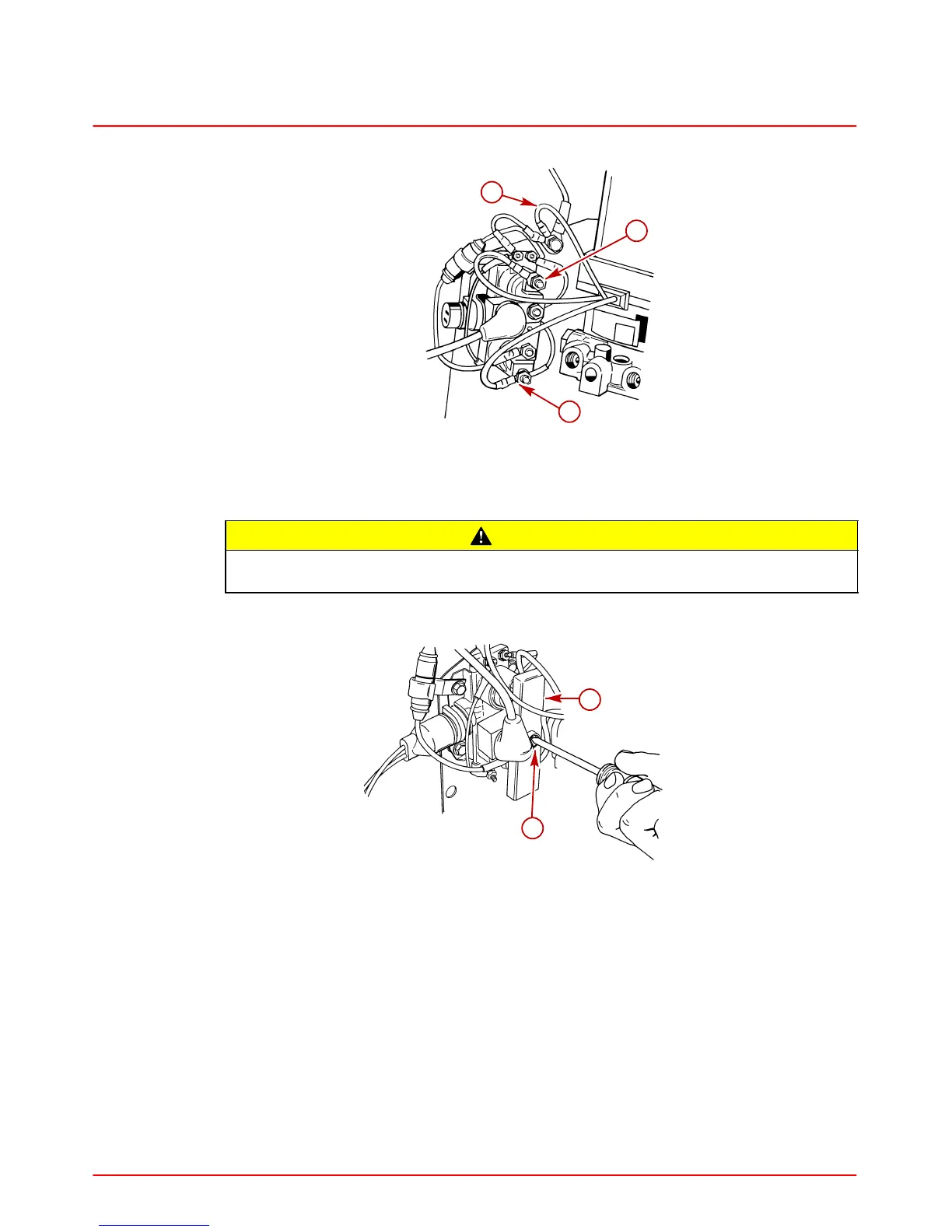

12. Connect the trim motor wires to solenoids as shown.
70359
a
b
c
a-Blue/White Motor Wire
b-Green/White Motor Wire
c-Black Ground Wire
CAUTION
Solenoid terminal cover screw is attached to 12 volt positive source. DO NOT
GROUND the screw driver when installing cover.
13. Install the solenoid terminal cover. Tighten the screw securely.
70360
a
b
a-Solenoid Terminal Cover
b-Screw
