Mercury BRAVO

TRIM CYLINDERS SERVICE MANUAL NUMBER 28
Page 5B-10 90-863160 MAY 2000

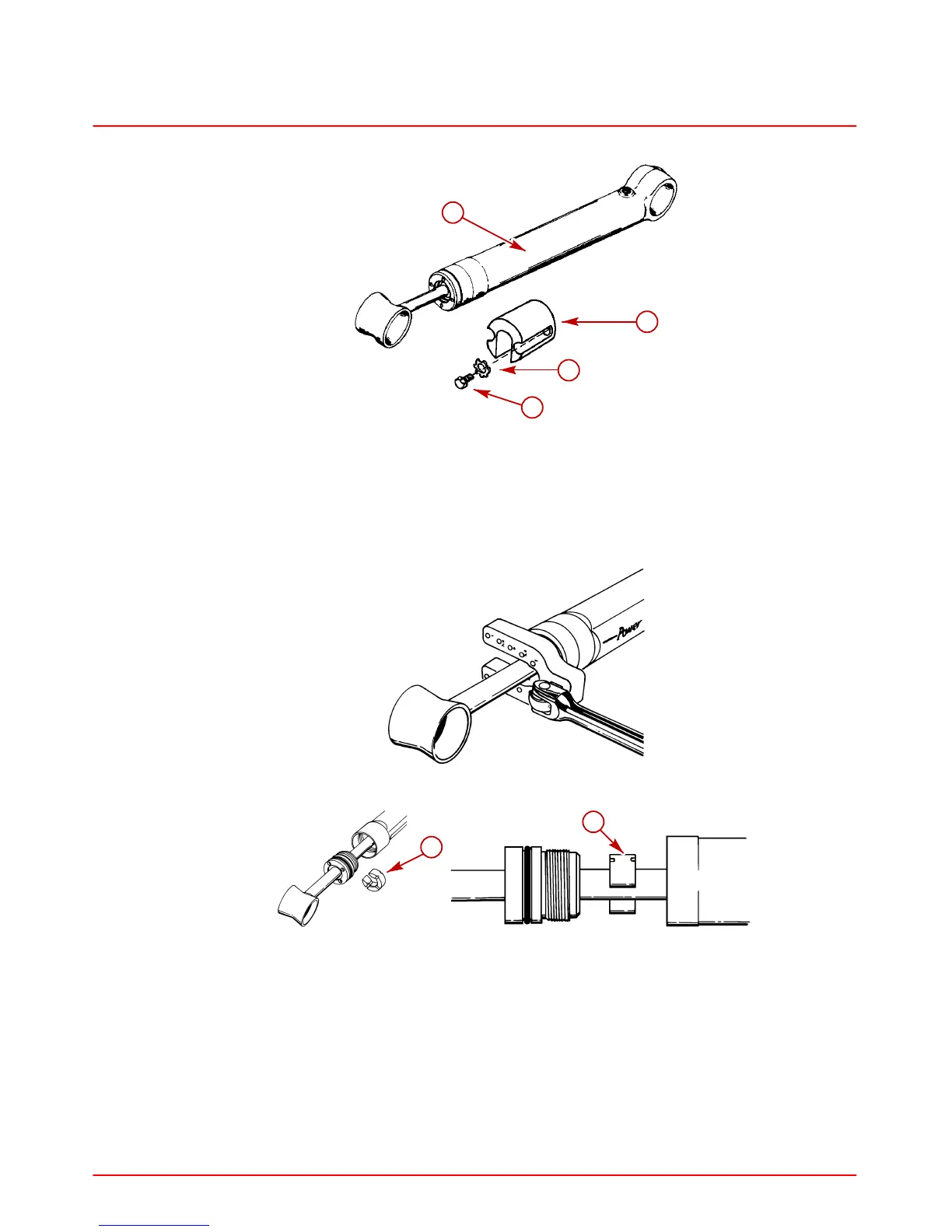

2. Remove trim cylinder anodes.
a
b
c
d
76902
a-Trim Cylinder
b-Trim Cylinder Anode
c-Screw (2)
d-Washer (2)
3. Remove trim cylinder end caps (Use special tool 91-821709).
71677
4. Remove tilt-limit insert.
76623
76624
a
a
a-Tilt Limit Insert
