Mercury BRAVO Service Manual

TRIM CYLINDERS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5B-11

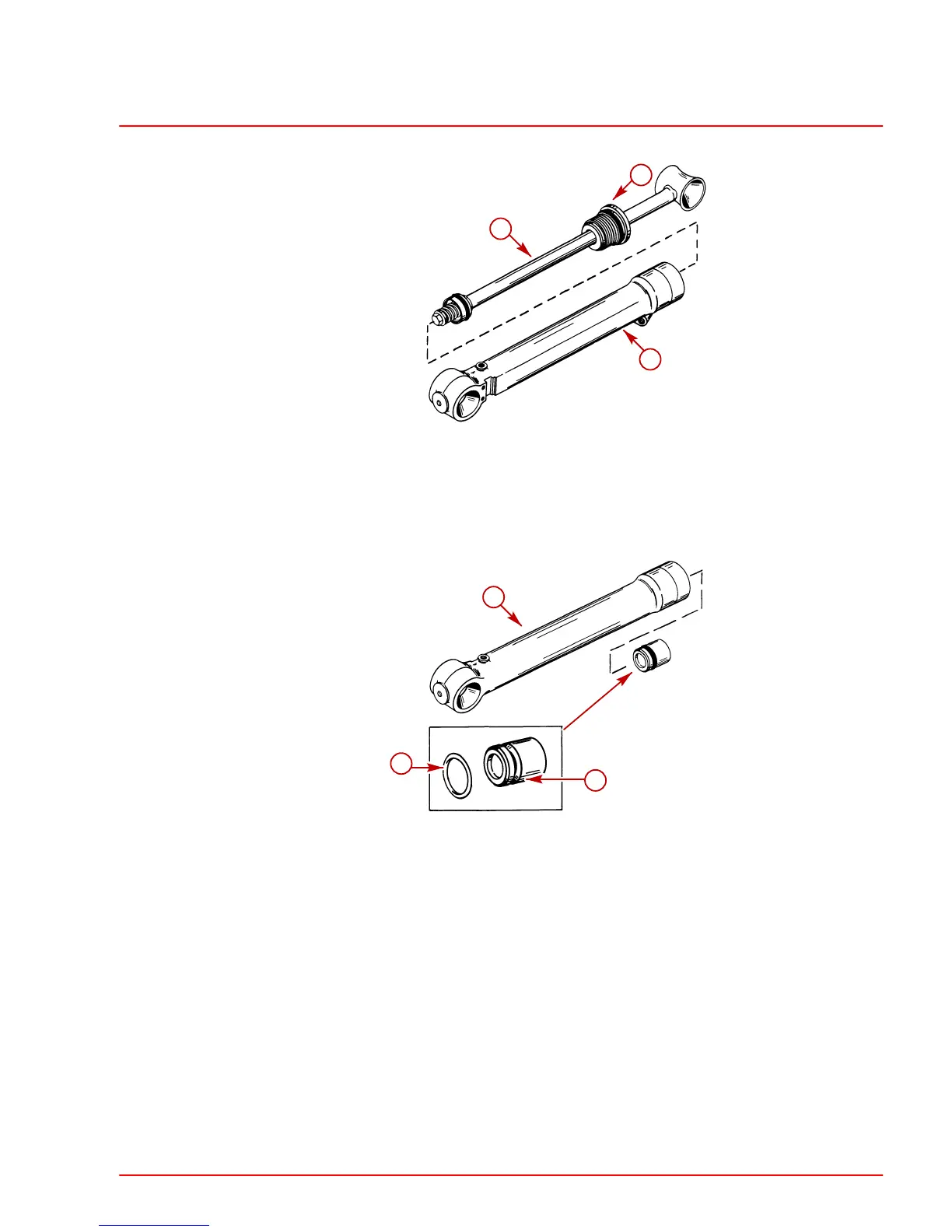

5. Remove piston rod assembly from cylinder.
22133
a
c
b
a-End Cap
b-Cylinder
c-Piston Rod Assembly
6. Remove floating piston from cylinder and remove O-ring by tapping cylinder on block
of wood.
22131
b
c
a
a-Floating Piston
b-Trim Cylinder
c-O-ring
