TRIM CYLINDERS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 5B-15

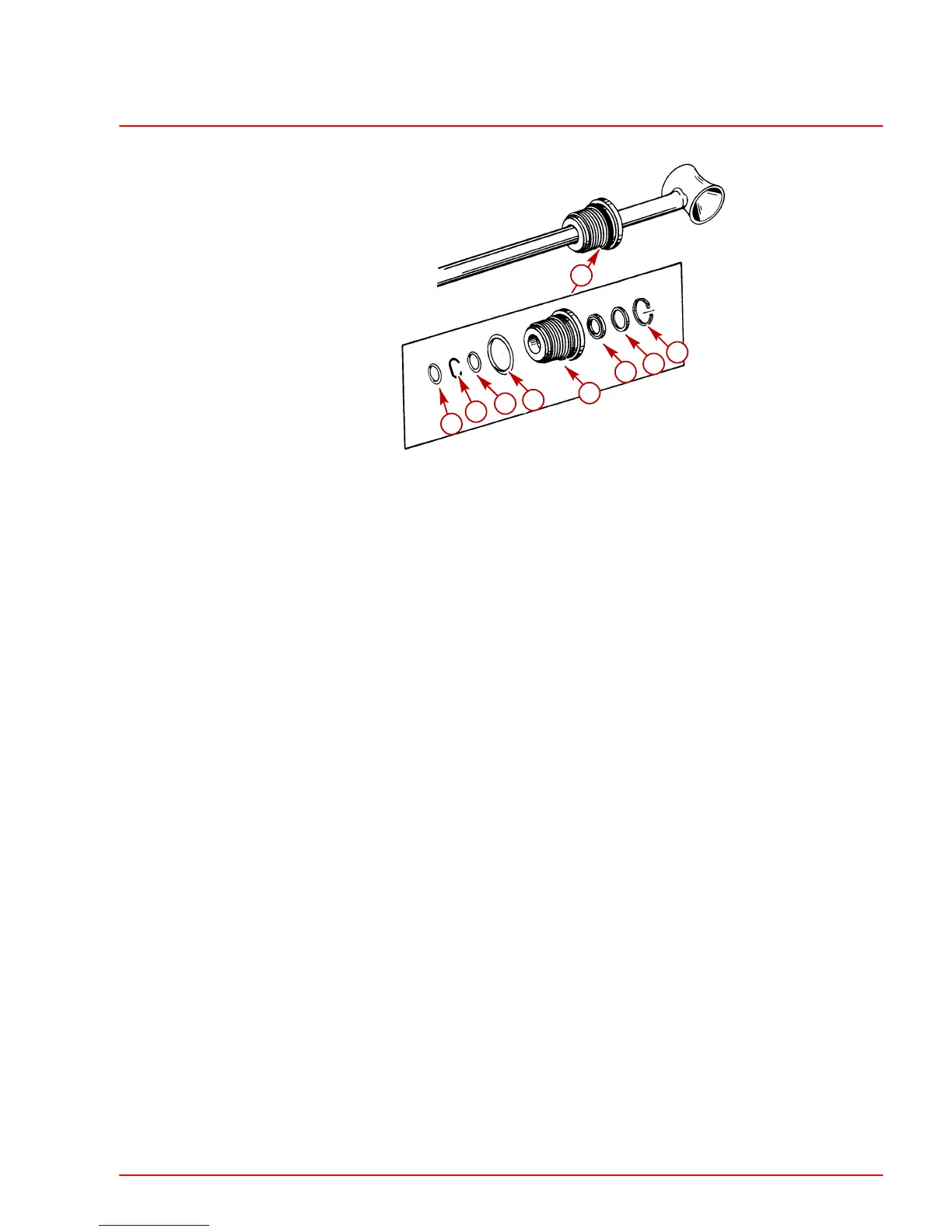

5. Install end cap onto piston rod.
22133
22132
e
c
d
c i
e
f
g
h
c-Small O-rings
d-Continuity Spring
e-End Cap
f-Rod Scraper
g-Plain Washer
h-Retaining Ring
i-Large O-ring
6. Install large O-ring on shock piston.
7. Install check ball, check ball eyelet, spring and spring pin into shock piston.
8. Apply Loctite 271 to threads of bolt being used in the following step.
